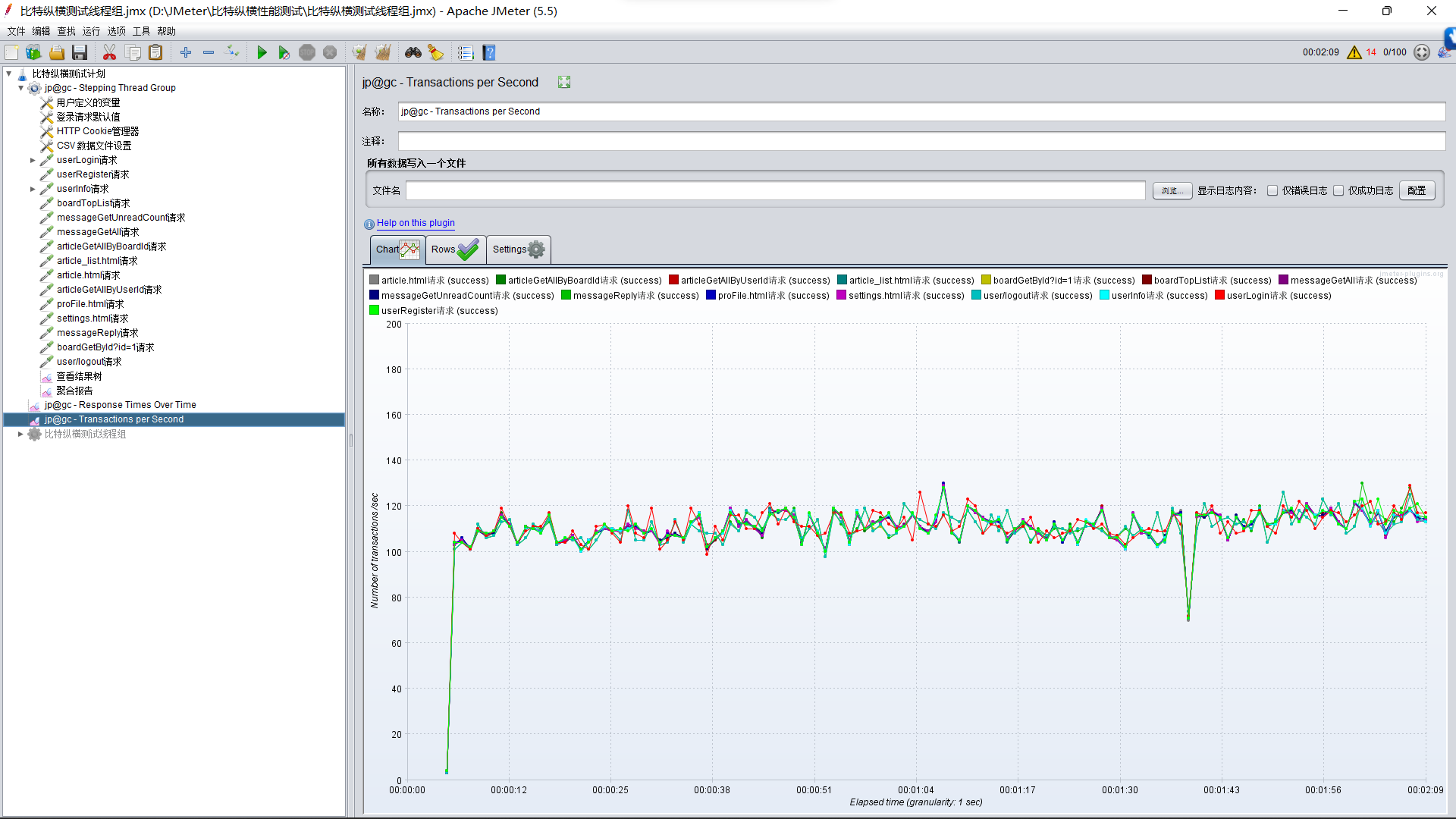

1. 进行性能测试

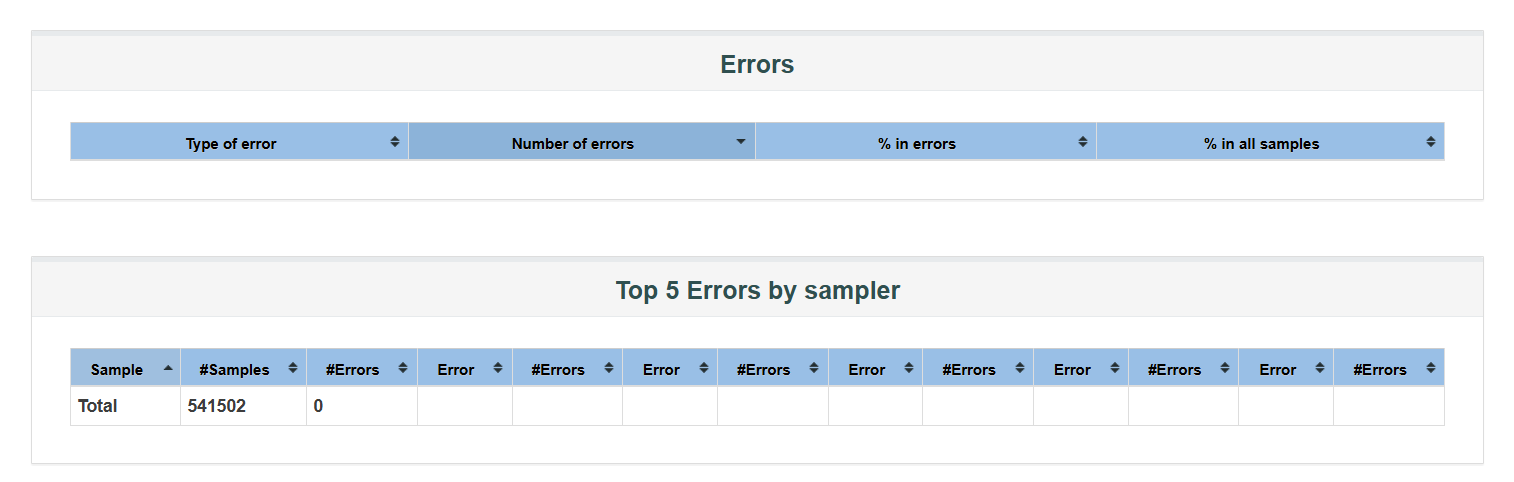

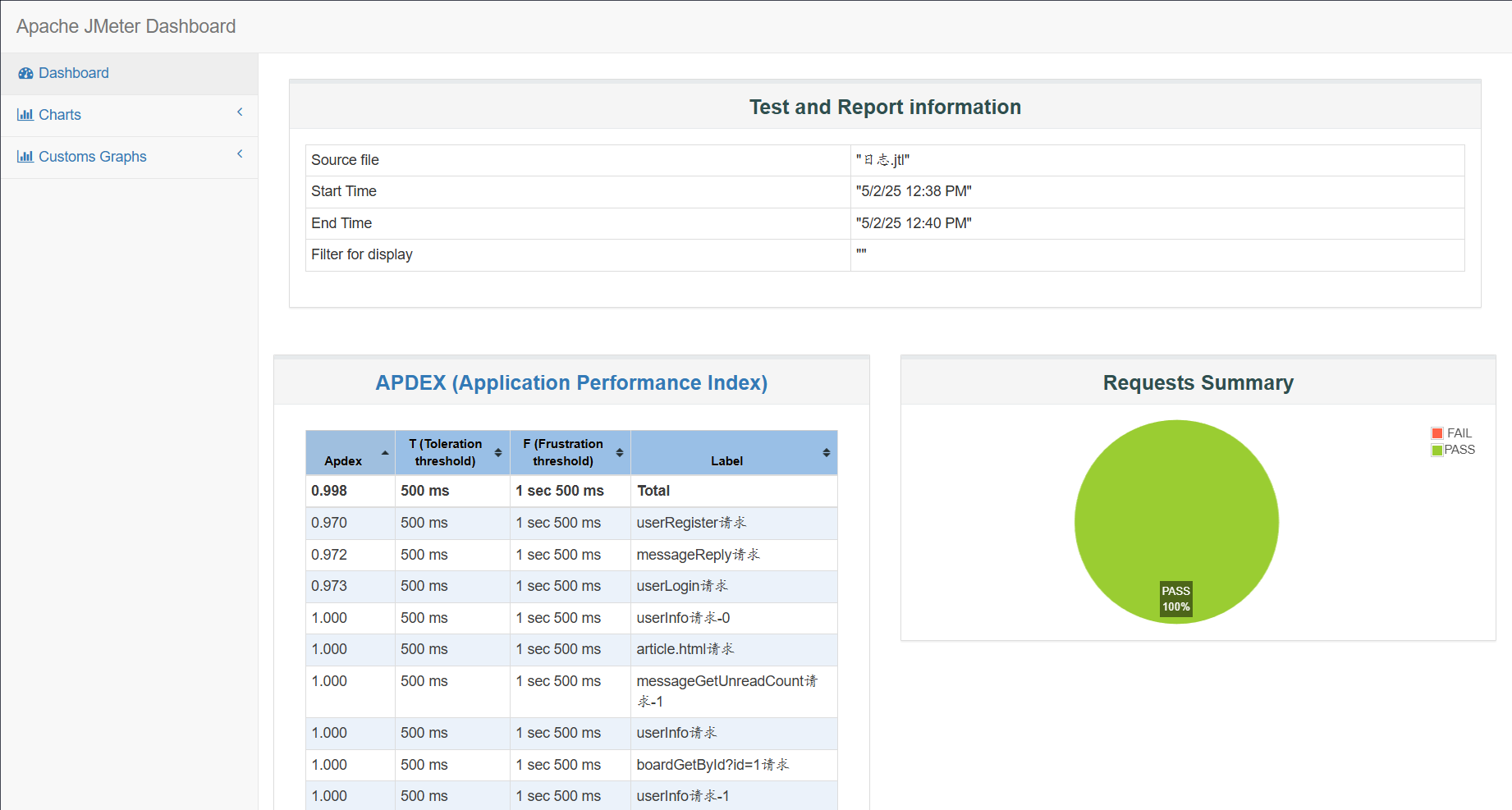

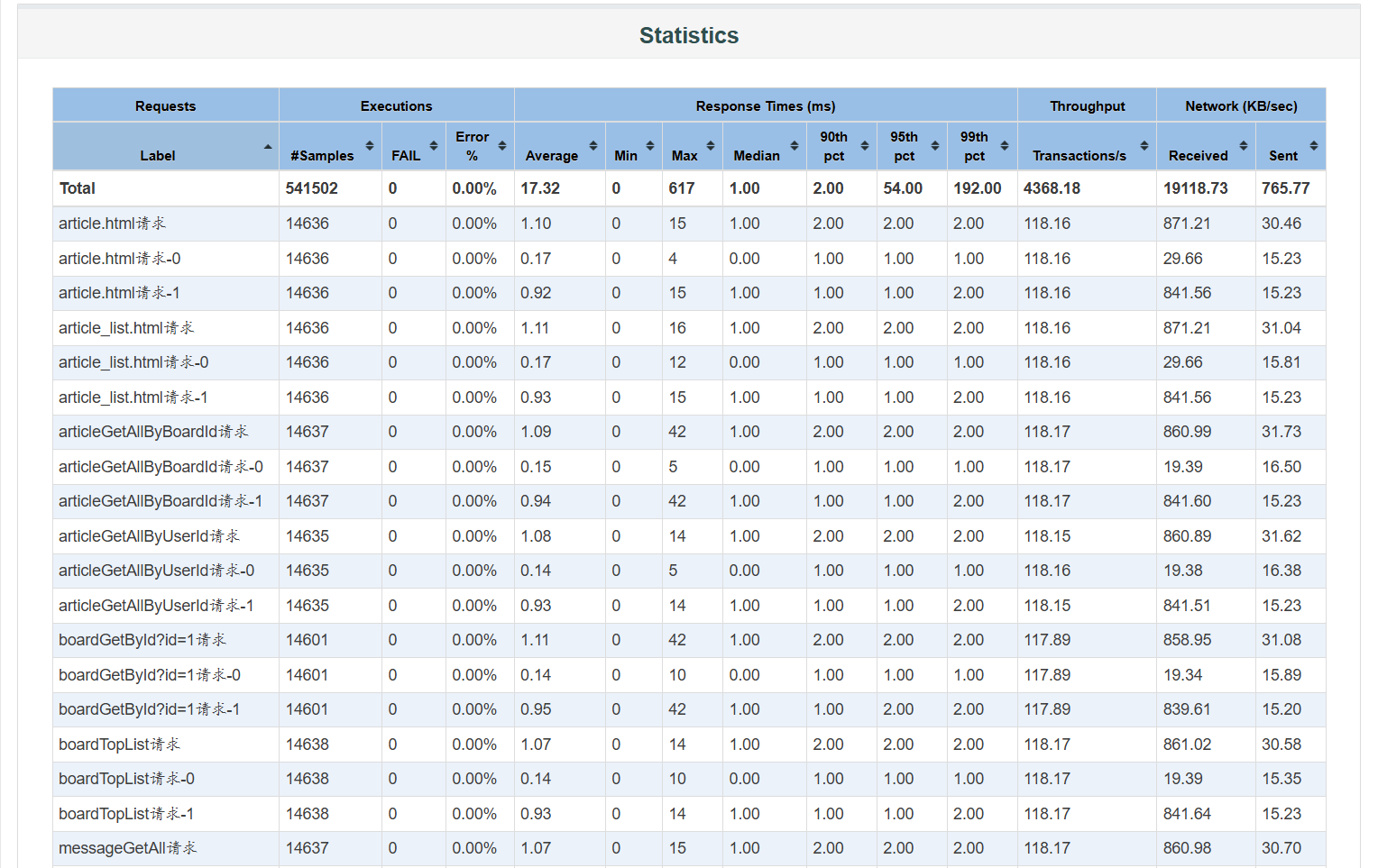

2. 生成测试报告

项目总结

1. 部分使用缺陷总结

2. 测试结论与建议

项目介绍

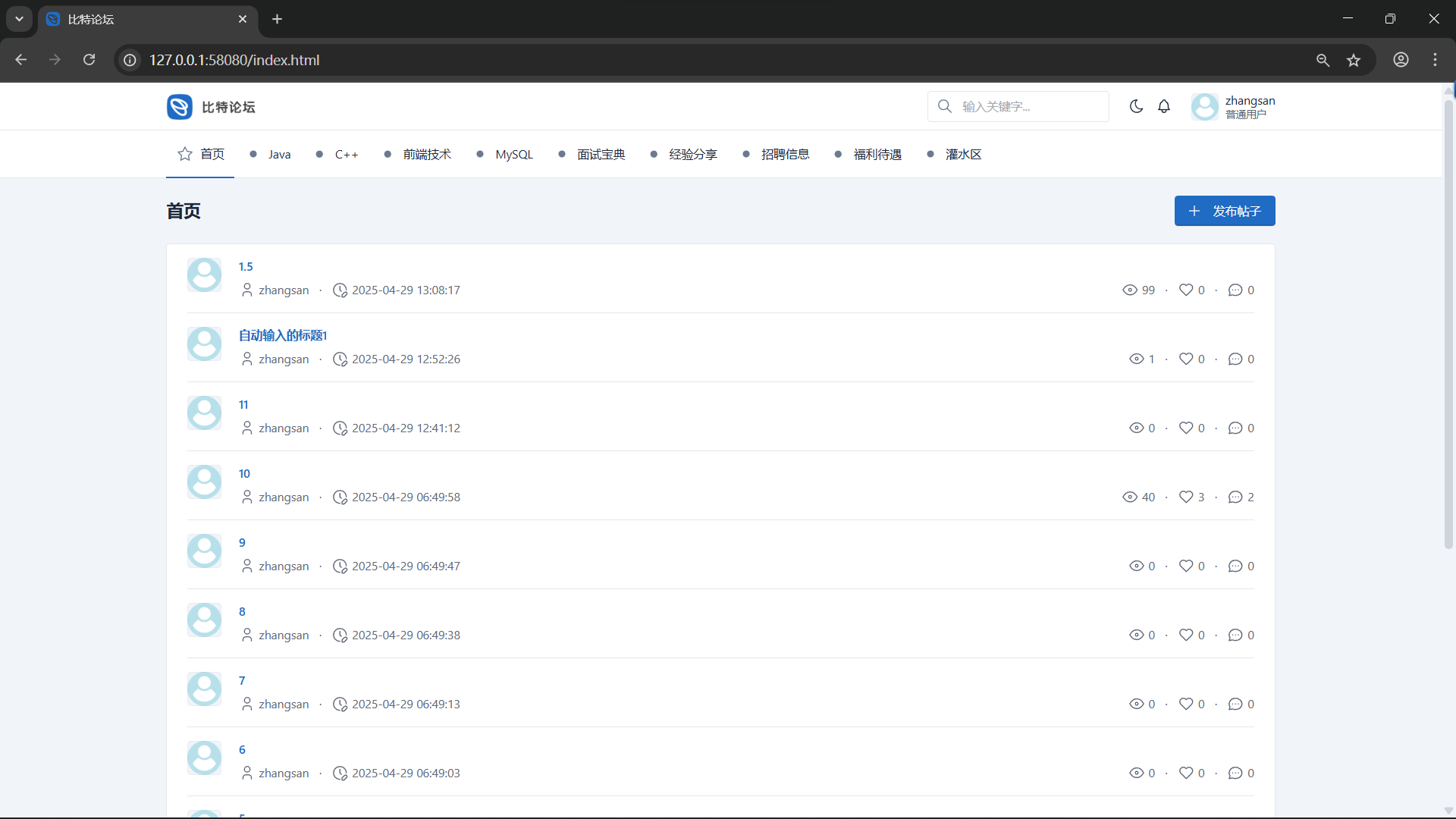

// "比特纵横" 项目是一个专注于技术交流与知识分享的平台，旨在为开发者、技术爱好者及专业人士提供一个便捷、高效的互动空间;

// 在功能方面，它支持用户发布技术文章、提出问题、分享项目和私信交流经验等。无论是探讨热门的编程语言、交流前沿的技术框架，还是解决开发过程中遇到的实际难题，都能在这里实现。用户可以对感兴趣的内容进行评论、点赞和私信回复，方便随时与他人交流看法。同时，系统具备强大的导航栏功能，用户能够快速定位到自己需要的技术内容;

// 使用本技术论坛系统，用户可以拓展技术视野，学习他人的优秀经验，提升自身技术水平。同时，还能结识志同道合的朋友，共同成长进步，助力每一位技术人在探索之路上不断前行。

项目源码库地址

比特纵横项目 git 库地址, 点击跳转https://gitee.com/zhou-jintao2002/forum-auto-test

项目功能测试

1. 自动化实施步骤

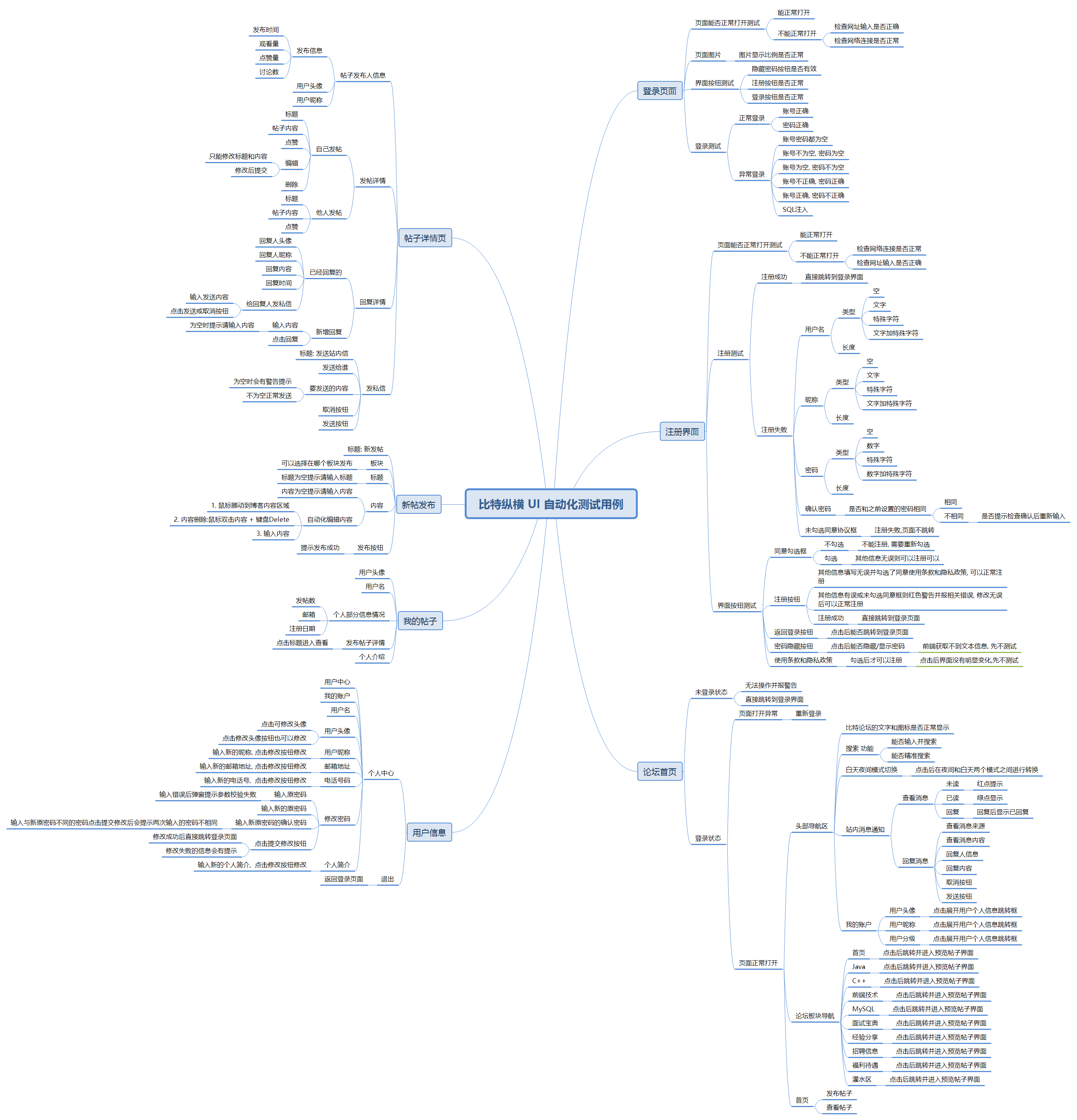

1.1 编写测试用例

1.2 自动化测试脚本开发

1.2.1 配置相关环境, 添加依赖

// 自动化测试基础知识及相关函数, 包括 Selenium 的安装和使用基础教程

1.2.2 代码编写

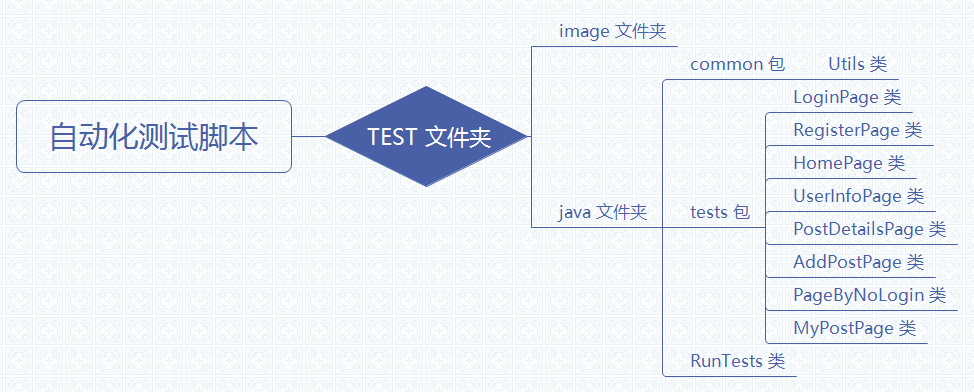

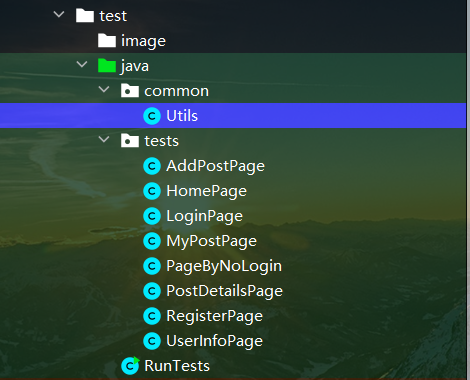

// 我们按照上面图中的不同分类层级分别进行创建, 方便后期代码视为管理和修改

// 以下是具体的代码内容, 需要源码可以点击上面的链接在 git 仓库中进行观看和引用

Utils.java

/*
通用配置*/
public class Utils {public static WebDriver driver;public static  WebDriver createDriver() {if (driver == null) {// 创建驱动对象WebDriverManager.chromedriver().setup();ChromeOptions options = new ChromeOptions();// 设置无头模式options.addArguments("-headless");// 设置浏览器加载策略options.setPageLoadStrategy(PageLoadStrategy.NORMAL);// 允许访问所以链接options.addArguments("--remote-allow-origins=*");// 驱动创建好了driver = new ChromeDriver(options);// 创建隐式等待driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(2));}return driver;}public Utils(String url) {// 调用 driver 对象driver = createDriver();// 访问 urldriver.get(url);}/*创建屏幕截图*/public void getScreenShot(String str) throws IOException {// 屏幕截图SimpleDateFormat sim1 = new SimpleDateFormat("yyyy-MM-dd");SimpleDateFormat sim2 = new SimpleDateFormat("HHmmssSS");String dirTime = sim1.format(System.currentTimeMillis());String fileTime = sim2.format(System.currentTimeMillis());// 生成文件的格式为: 年-月-日/test.类名-时分秒毫秒.pngString fileName = "./src/test/image/" + dirTime + "/" + str + "-" + fileTime + ".png";// System.out.printf("fileName:" + fileName);File srcFile = ((TakesScreenshot)driver).getScreenshotAs(OutputType.FILE);// srcFile 放到指定位置FileUtils.copyFile(srcFile,new File((filename)));}
}

RunTests.java

/*
所有代码的运行*/
public class RunTests {public static void main(String[] args) throws InterruptedException {// 登录测试LoginPage login = new LoginPage();login.LoginPageRight();login.LoginSuc();login.LoginNoUserNameAndPassword();login.LoginNoUserName();login.LoginNoPassward();login.LoginUserNameError();login.LoginPasswordError();// 注册测试RegisterPage regist = new RegisterPage();regist.ReqisterPageRight();regist.GitContent();regist.ReqisterReturnLogin();regist.RegisterSuc();regist.RegisterNoUserName();regist.RegisterNoNickName();regist.RegisterNoPassword();regist.RegisterPasswordAdmitFailuer();regist.RegisterNoAgreeAccord();// 论坛首页测试HomePage home = new HomePage();home.HomeLogin();home.HomeSearch();home.HomeColorSwitch();home.HomeReceiveMessages();home.HomeCloseMessage();home.HomeReplyMessage();home.HomeMyAccountSuc();home.HomeCloseMyAccount();home.HomePostSkip();// 帖子详情页测试PostDetailsPage postDetails = new PostDetailsPage();postDetails.HomeOpenSuc();postDetails.PostOpen();postDetails.PostThumbsUp();postDetails.PostRewriteEnter();postDetails.PostRewrite();postDetails.PostDelete();postDetails.PostReply();// 新发布帖子测试AddPostPage addPost = new AddPostPage();addPost.AddPostEnter();addPost.AddPost();// 用户详情页测试UserInfoPage userInfo = new UserInfoPage();userInfo.UserInfoEnter();userInfo.PasswordChange();userInfo.PasswordChangeFail1();userInfo.PassWordChangeFail2();// 我的帖子页测试MyPostsPage myPost = new MyPostsPage();myPost.MyPostEter();myPost.PostEnterSuc();// 未登录的所有测试PageByNoLogin noLogin = new PageByNoLogin();noLogin.ByNoLogin();Thread.sleep(1000);driver.quit();}
}

LoginPage.java

/*
登录功能测试*/

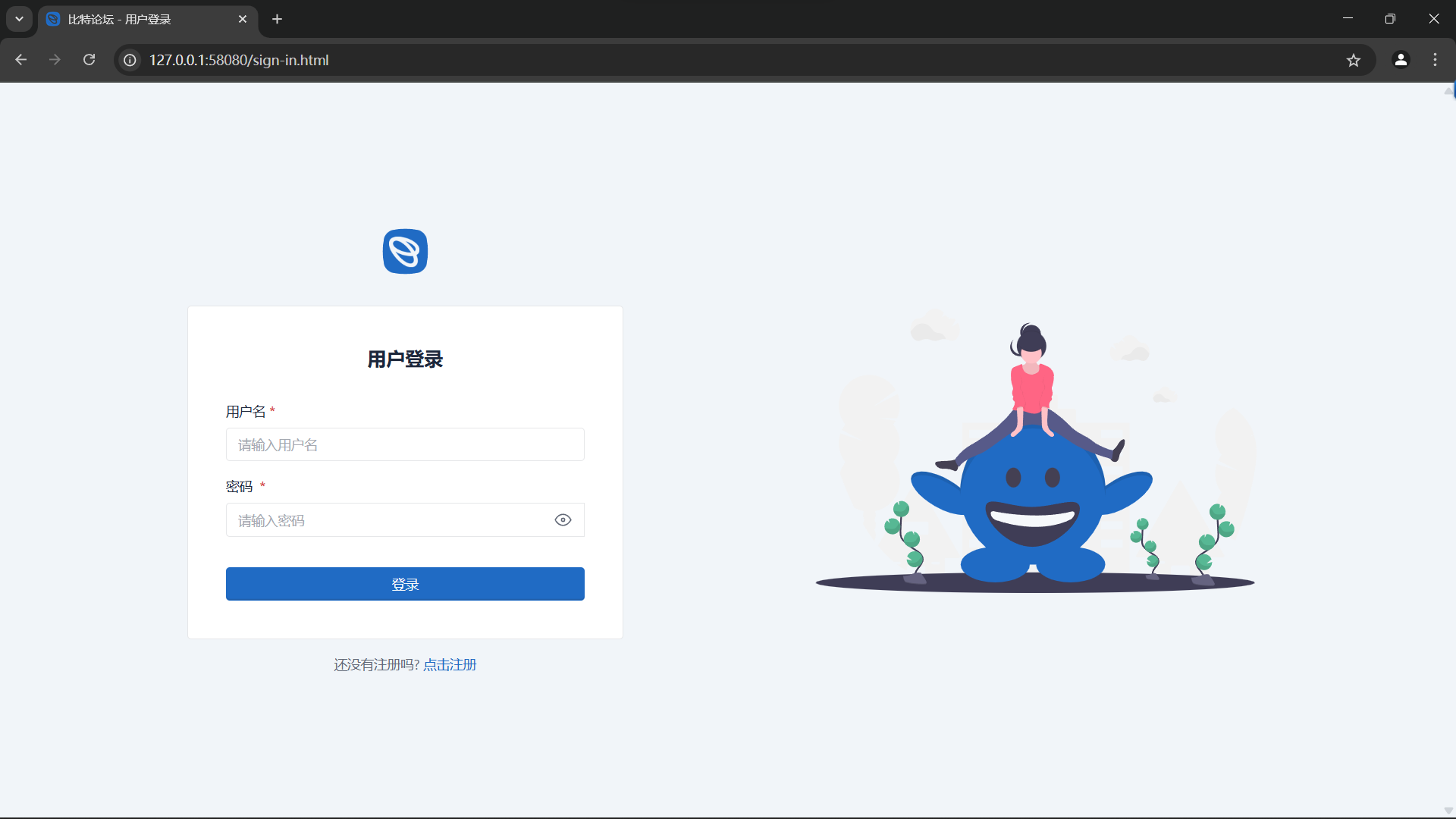

public class LoginPage extends Utils {public static String url = "http://127.0.0.1:58080/sign-in.html";public LoginPage() {super(url);}// 检查登录界面是否正常打开public void LoginPageRight() throws InterruptedException {// 获取页面元素String loginname = driver.findElement(By.cssSelector("body > div > div > div > div:nth-child(1) > div > div.card.card-md > div > h2")).getText();// 断言检查assert loginname.equals("用户登录");}// 成功登录public void LoginSuc() throws InterruptedException {// 刷新页面driver.navigate().refresh();// 输入账号密码,并点击登录按钮driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");driver.findElement(By.cssSelector("#password")).sendKeys("123");driver.findElement(By.cssSelector("#submit")).click();// 通过断言检查是否登录成功String title = driver.findElement(By.cssSelector("#article_list_board_title")).getText();assert title.equals("首页");}// 异常登录 (用户名和密码都为空)public void LoginNoUserNameAndPassword() throws InterruptedException {// 从成功登录界面回退到登录界面driver.navigate().back();// 刷新界面, 清空输入框中的内容driver.navigate().refresh();// 找到用户名输入框, 输入为空driver.findElement(By.cssSelector("#username")).sendKeys("");// 找到密码输入框, 输入为空driver.findElement(By.cssSelector("#password")).sendKeys("");// 点击登录按钮driver.findElement(By.cssSelector("#submit")).click();// 检查用户名输入框下面的提示是否为"用户名不能为空"String tip1 = driver.findElement(By.cssSelector("#signInForm > div.mb-3 > div")).getText();assert tip1.equals("用户名不能为空");// 检查密码输入框下面的提示是否为"密码不能为空"String tip2 = driver.findElement(By.cssSelector("#signInForm > div.mb-2 > div > div")).getText();assert tip2.equals("密码不能为空");}// 异常登录 (用户名为空)public void LoginNoUserName() {// 刷新界面, 清空输入框中的内容driver.navigate().refresh();// 找到用户名输入框, 输入为空driver.findElement(By.cssSelector("#username")).sendKeys("");// 找到密码输入框, 输入正确密码driver.findElement(By.cssSelector("#password")).sendKeys("123");// 点击登录按钮driver.findElement(By.cssSelector("#submit")).click();// 检查用户名输入框下面的提示是否为"用户名不能为空"String tip1 = driver.findElement(By.cssSelector("#signInForm > div.mb-3 > div")).getText();assert tip1.equals("用户名不能为空");}// 异常登录 (密码为空)public void LoginNoPassward() {// 刷新界面, 清空输入框中的内容driver.navigate().refresh();// 找到用户名输入框, 输入用户名driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");// 找到密码输入框, 输入为空driver.findElement(By.cssSelector("#password")).sendKeys("");// 点击登录按钮driver.findElement(By.cssSelector("#submit")).click();// 检查密码输入框下面的提示是否为"密码不能为空"String tip1 = driver.findElement(By.cssSelector("#signInForm > div.mb-2 > div > div")).getText();assert tip1.equals("密码不能为空");}// 异常登录(用户名错误)public void LoginUserNameError() throws InterruptedException {// 刷新界面, 清空输入框中的内容driver.navigate().refresh();// 找到用户名输入框, 输入错误的用户名driver.findElement(By.cssSelector("#username")).sendKeys("zhngsan");// 找到密码输入框, 输入正确的密码driver.findElement(By.cssSelector("#password")).sendKeys("123");// 点击登录按钮driver.findElement(By.cssSelector("#submit")).click();// 获取 urlThread.sleep(1000);String loginUrl = driver.getCurrentUrl();// 判断当前是否还是登录页面, 还在登录页面则说明登录失败assert loginUrl.equals("http://127.0.0.1:58080/sign-in.html");}// 异常登录(密码错误)public void LoginPasswordError() throws InterruptedException {// 刷新界面, 清空输入框中的内容driver.navigate().refresh();// 找到用户名输入框, 输入正确的用户名driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");// 找到密码输入框, 输入正确的密码driver.findElement(By.cssSelector("#password")).sendKeys("1243");// 点击登录按钮driver.findElement(By.cssSelector("#submit")).click();// 获取 urlThread.sleep(1000);String loginUrl = driver.getCurrentUrl();// 判断当前是否还是登录页面, 还在登录页面则说明登录失败assert loginUrl.equals("http://127.0.0.1:58080/sign-in.html");}
}

RegisterPage.java

/*
注册功能测试*/
public class RegisterPage extends Utils {public static String url = "http://127.0.0.1:58080/sign-up.html";public RegisterPage() {super(url);}// 检查注册页面是否正常打开public void ReqisterPageRight() {// 获取界面元素String title = driver.findElement(By.cssSelector("#signUpForm > div > h2")).getText();// 通过断言判断界面是否加载啊成功assert title.equals("用户注册");}/*部分按钮测试*/// 测试显示/隐藏密码的按钮是否正常// 因为前端获取不到文本信息, 所以自动化代码无法测试, 但是肉眼可以观察到这个功能正常public void GitContent() throws InterruptedException {// 在密码输入框输入密码driver.findElement(By.cssSelector("#password")).sendKeys("1122");// 点击隐藏/显示密码 按钮driver.findElement(By.cssSelector("#signUpForm > div > div:nth-child(4) > div > span")).click();Thread.sleep(2000);// 获取密码String passwardShow = driver.findElement(By.cssSelector("#password")).getText();// 断言判断assert passwardShow.equals("1122");
//        System.out.println(passwardShow);
//        System.out.println("1");}// 返回登录按钮测试public void ReqisterReturnLogin() {// 点击登录按钮driver.findElement(By.cssSelector("body > div > div > div.text-center.text-muted.mt-3 > a")).click();// 通过断言判断是否成功返回String loginUrl = driver.getCurrentUrl();assert loginUrl.equals("http://127.0.0.1:58080/sign-in.html");}/*注册功能测试*/// 注册成功// 注册用户名每次测试都需要更改public void RegisterSuc() throws InterruptedException {// 返回注册页面操作driver.navigate().back();// 刷新页面, 确保输入框无内容driver.navigate().refresh();// 输入正确的用户名driver.findElement(By.cssSelector("#username")).sendKeys("ceshi1.3");// 输入正确的昵称driver.findElement(By.cssSelector("#nickname")).sendKeys("ceshi13");// 输入正确的密码driver.findElement(By.cssSelector("#password")).sendKeys("111");// 输入真确的确认密码driver.findElement(By.cssSelector("#passwordRepeat")).sendKeys("111");// 勾选同意按钮driver.findElement(By.cssSelector("#policy")).click();// 点击注册driver.findElement(By.cssSelector("#submit")).click();Thread.sleep(2000);// 获取界面 urlString loginUrl = driver.getCurrentUrl();// 断言检测是否跳转到登录页面assert loginUrl.equals("http://127.0.0.1:58080/sign-in.html");}// 注册失败 (用户名为空)public void RegisterNoUserName() {// 重新返回注册页进行操作driver.navigate().back();// 刷新页面, 确保输入框无内容driver.navigate().refresh();// 在用户名输入框输入空driver.findElement(By.cssSelector("#username")).sendKeys("");// 需要点击一下页面之后才会出现提示driver.findElement(By.cssSelector("#submit")).click();// 获取输入框下的提示信息String tip1 = driver.findElement(By.cssSelector("#signUpForm > div > div:nth-child(2) > div")).getText();// 断言检测提示信息是否为"用户名不能为空"assert tip1.equals("用户名不能为空");}// 注册失败 (昵称为空)public void RegisterNoNickName() {// 刷新页面, 确保输入框无内容driver.navigate().refresh();// 在昵称输入框输入空driver.findElement(By.cssSelector("#nickname")).sendKeys("");// 需要点击一下页面之后才会出现提示driver.findElement(By.cssSelector("#submit")).click();// 获取输入框下的提示信息String tip1 = driver.findElement(By.cssSelector("#signUpForm > div > div:nth-child(3) > div")).getText();// 断言检测提示信息是否为"昵称不能为空"assert tip1.equals("昵称不能为空");}// 注册失败 (密码为空)public void RegisterNoPassword () {// 刷新页面, 确保输入框无内容driver.navigate().refresh();// 在密码输入框中输入空driver.findElement(By.cssSelector("#password")).sendKeys("");// 点击一下页面driver.findElement(By.cssSelector("#submit")).click();// 获取输入框下的提示信息String tip2 = driver.findElement(By.cssSelector("#signUpForm > div > div:nth-child(4) > div > div")).getText();// 断言检测是否为"密码不能为空"assert tip2.equals("密码不能为空");}// 注册失败 (确认密码不正确)public void RegisterPasswordAdmitFailuer() {// 刷新页面driver.navigate().refresh();// 在密码输入框中输入正确的密码driver.findElement(By.cssSelector("#password")).sendKeys("123");// 在确认密码框输入与原密码不同的密码driver.findElement(By.cssSelector("#passwordRepeat")).sendKeys("12");// 点击一下页面driver.findElement(By.cssSelector("#submit")).click();// 获取输入框下的提示信息String tip3 = driver.findElement(By.cssSelector("#signUpForm > div > div:nth-child(5) > div > div")).getText();// 断言检测是否为"请检查确认密码"assert tip3.equals("请检查确认密码");}// 注册失败 (未勾选同意协议框)public void RegisterNoAgreeAccord() {// 刷新界面, 确保输入框为空driver.navigate().refresh();// 在用户名输入框输入正确的用户名driver.findElement(By.cssSelector("#username")).sendKeys("ceshi2");// 在昵称输入框输入真确的昵称driver.findElement(By.cssSelector("#nickname")).sendKeys("ceshi2.0");// 在密码输入框输入正确的密码driver.findElement(By.cssSelector("#password")).sendKeys("123");// 在确认密码输入框输入正确的密码driver.findElement(By.cssSelector("#passwordRepeat")).sendKeys("123");// 点击注册driver.findElement(By.cssSelector("#submit")).click();// 获取页面 urlString registerUrl = driver.getCurrentUrl();// 断言检查是否为注册界面的url, 以此判断不勾选同意协议框是否能注册成功assert registerUrl.equals("http://127.0.0.1:58080/sign-up.html");}
}

HomePage.java

/*
论坛首页测试*/
public class HomePage extends Utils {public static String url = "http://127.0.0.1:58080/sign-in.html";public HomePage() {super(url);}/*未登录状态下 --- 访问论坛首页由 PageByNoLogin 进行测试*//*登录状态下 --- 测试论坛首页*/// 检查页面(论坛首页)是否加载成功public void HomeLogin() throws InterruptedException {// 返回登录页并刷新页面driver.navigate().refresh();// 重新登录driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");driver.findElement(By.cssSelector("#password")).sendKeys("123");driver.findElement(By.cssSelector("#submit")).click();// 加一个显式等待WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(1));wait.until(ExpectedConditions.urlToBe("http://127.0.0.1:58080/index.html"));// 获取首页 urlString HomeUrl = driver.getCurrentUrl();// 断言判断是否跳转到了论坛首页assert HomeUrl.equals("http://127.0.0.1:58080/index.html");}// 搜索功能测试public void HomeSearch() throws InterruptedException {// 找到搜索框并输入想要搜索的内容driver.findElement(By.cssSelector("body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div.nav-item.d-none.d-md-flex.me-3 > div > form > div > input")).sendKeys("1");// 点击搜索按钮(没有点击按钮, 选择从键盘输入 Enter 跳转)
//        driver.findElement(By.cssSelector("")).click();// 查找搜索框元素WebElement element = driver.findElement(By.cssSelector("body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div.nav-item.d-none.d-md-flex.me-3 > div > form > div > input"));// 鼠标选中搜索框并点击Actions actions = new Actions(driver);actions.click(element).perform();// 键盘输入 Enter 进行搜索

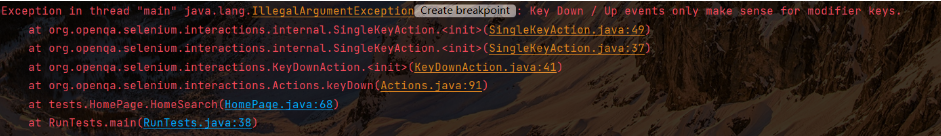

//        actions.keyDown(Keys.ENTER).perform();// 因为 Enter 键一般不单独使用, 需要结合其他 Alt 按键使用, 所以修改代码actions.sendKeys(Keys.ENTER).build().perform();// 添加显式等待WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(1));wait.until(ExpectedConditions.urlToBe("http://127.0.0.1:58080/?"));// 获取当前页面的 urlString searchUrl = driver.getCurrentUrl();// 断言检查是否搜索成功assert searchUrl.equals("http://127.0.0.1:58080/?");}//白天和夜间模式切换测试public void HomeColorSwitch() {// 找到模式切换按钮并点击, 即切换为夜间模式driver.findElement(By.cssSelector("body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div:nth-child(2) > a.nav-link.px-0.hide-theme-dark > svg")).click();// 添加显式等待WebDriverWait wait1 = new WebDriverWait(driver, Duration.ofSeconds(1));wait1.until(ExpectedConditions.urlToBe("http://127.0.0.1:58080/?theme=dark"));// 获取界面 urlString blackUrl = driver.getCurrentUrl();// 断言检查是否切换成功assert blackUrl.equals("http://127.0.0.1:58080/?theme=dark");// 再次点击模式切换按钮, 即切换为白天模式driver.findElement(By.cssSelector("body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div:nth-child(2) > a.nav-link.px-0.hide-theme-light > svg")).click();// 添加显式等待WebDriverWait wait2 = new WebDriverWait(driver, Duration.ofSeconds(1));wait2.until(ExpectedConditions.urlToBe("http://127.0.0.1:58080/?theme=light"));// 获取界面 urlString lighteUrl = driver.getCurrentUrl();// 断言判断是否切换成功assert lighteUrl.equals("http://127.0.0.1:58080/?theme=light");}// 接收站内消息通知测试public void HomeReceiveMessages() throws InterruptedException {// 点击消息查看按钮driver.findElement(By.cssSelector("body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div:nth-child(2) > div > a > svg")).click();// 添加一个强制等待Thread.sleep(1000);//断言检查是否正常打开String receive = driver.findElement(By.cssSelector("#offcanvasEndLabel")).getText();assert receive.equals("所有站内信");}// 回复私信测试public void HomeReplyMessage() throws InterruptedException {// 点击消息查看消息详情driver.findElement(By.cssSelector("#index_div_message_list > div > div > div:nth-child(3)")).click();// 点击回复按钮driver.findElement(By.cssSelector("#btn_index_message_reply")).click();// 这个输入框不能直接交互, 所以先点击之后再输入WebElement write = driver.findElement(By.cssSelector("#index_message_reply_receive_content"));Actions actions = new Actions(driver);actions.click(write).perform();// 输入回复内容driver.findElement(By.cssSelector("#index_message_reply_receive_content")).sendKeys("收到!");// 点击发送按钮driver.findElement(By.cssSelector("#btn_index_send_message_reply")).click();}// 发送完之后关闭消息窗口public void HomeCloseMessage() {// 关闭查看消息页面driver.findElement(By.cssSelector("#index_message_offcanvasEnd > div.offcanvas-header > button")).click();}// 我的账户打开测试public void HomeMyAccountSuc() {// 点击头像打开driver.findElement(By.cssSelector("#index_nav_avatar")).click();// 获取界面信息String ele1 = driver.findElement(By.cssSelector("#index_user_settings")).getText();// 断言检测ele1.equals("个人中心");}// 查看完之后关闭我的账户页面public void HomeCloseMyAccount() {// 关闭我的账户页面driver.findElement(By.cssSelector("body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none")).click();}// 导航栏跳转查看详细帖子测试(以Java 板块为例)public void HomePostSkip() throws InterruptedException {// 点击 Java 板块driver.findElement(By.cssSelector("#topBoardList > li:nth-child(2) > a")).click();// 获取该页帖子标题信息Thread.sleep(1000);String content = driver.findElement(By.cssSelector("#artical-items-body > div > div > div.col > div.text-truncate > a > strong")).getText();// 断言检查是否正确跳转assert content.equals("3");}
}

PostDetailsPage.java

/*
帖子详情页的测试*/
public class PostDetailsPage extends Utils {public static String url = "http://127.0.0.1:58080/index.html";public PostDetailsPage() {super(url);}// 首页打开测试public void HomeOpenSuc() {// 需要重新登录// 返回登录页并刷新页面driver.navigate().refresh();// 重新登录driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");driver.findElement(By.cssSelector("#password")).sendKeys("123");driver.findElement(By.cssSelector("#submit")).click();// 获取界面元素String ele1 = driver.findElement(By.cssSelector("#article_list_board_title")).getText();// 断言判断是否打开成功assert ele1.equals("首页");}// 点击打开帖子, 查看详情public void PostOpen() {// 点击帖子标题, 进入帖子详情页driver.findElement(By.cssSelector("#artical-items-body > div:nth-child(1) > div > div.col > div.text-truncate > a > strong")).click();// 获取页面元素String ele2 = driver.findElement(By.cssSelector("#bit-forum-content > div.page-body > div > div > div:nth-child(2) > h3")).getText();// 断言判断是否进入帖子详情页assert ele2.equals("最新回复");}// 点赞功能测试public void PostThumbsUp() {// 点击点赞按钮driver.findElement(By.cssSelector("#details_btn_like_count")).click();// 获取当前点赞数String ele3 = driver.findElement(By.cssSelector("#bit-forum-content > div.page-header.d-print-none > div > div.col-auto.d-none.d-md-inline > ul > li:nth-child(3)")).getText();// 断言判断是否正确assert ele3.equals("4");}// 编辑功能测试// 编辑页面进入测试public void PostRewriteEnter() throws InterruptedException {Thread.sleep(1000);// 点击编辑按钮, 进入编辑界面driver.findElement(By.cssSelector("#bit-forum-content > div.page-body > div > div > div:nth-child(1) > div.col-9.card.card-lg > div.card-footer.bg-transparent.mt-auto.justify-content-end > div > div:nth-child(2) > div")).click();// 获取界面元素Thread.sleep(1000);String ele4 = driver.findElement(By.cssSelector("#bit-forum-content > div.page-header.d-print-none > div > div > div > h2")).getText();// 断言判断是否进入成功assert ele4.equals("编辑");}// 编辑内容测试public void PostRewrite() throws InterruptedException {// 找到标题框元素WebElement ele5 = driver.findElement(By.cssSelector("#edit_article_title"));// 点击帖子标题框Actions actions = new Actions(driver);actions.click(ele5).perform();// 清空原有内容
//        actions.keyDown(Keys.BACK_SPACE).perform();
//        driver.findElement(By.cssSelector("#edit_article_title")).sendKeys("");actions.keyDown(Keys.CONTROL).sendKeys("a").keyUp(Keys.CONTROL).perform();actions.sendKeys("").perform();// 输入修改内容// 也可以用 action.sendKeys();driver.findElement(By.cssSelector("#edit_article_title")).sendKeys("1.5");// 获取修改后的内容
//        String ele6 = driver.findElement(By.cssSelector("#edit_article_title")).getText();// 找到帖子详情内容修改框WebElement ele7 = driver.findElement(By.cssSelector("#edit_article_content_area > div.CodeMirror.cm-s-default.CodeMirror-wrap > div.CodeMirror-scroll"));// 点击内容修改框actions.click(ele7).perform();// 清空原有内容
//        Thread.sleep(1000);
//        actions.keyDown(Keys.BACK_SPACE).perform();
//        driver.findElement(By.cssSelector("#edit_article_content_area > div.CodeMirror.cm-s-default.CodeMirror-wrap > div.CodeMirror-scroll > div.CodeMirror-sizer > div > div > div > div.CodeMirror-code > div > pre")).sendKeys("");actions.keyDown(Keys.CONTROL).sendKeys("a").keyUp(Keys.CONTROL).perform();actions.sendKeys("").perform();// 输入要修改的内容
//        driver.findElement(By.cssSelector("#edit_article_content_area > div.CodeMirror.cm-s-default.CodeMirror-wrap > div.CodeMirror-scroll > div.CodeMirror-sizer > div > div > div > div.CodeMirror-code > div > pre")).sendKeys("2.01");actions.sendKeys("1.50").perform();// 点击提交按钮Thread.sleep(1000);WebElement ele8 = driver.findElement(By.cssSelector("#edit_article_submit"));actions.click(ele8).perform();// 获取新帖子标题信息Thread.sleep(2000);String ele9 = driver.findElement(By.cssSelector("#artical-items-body > div:nth-child(1) > div > div.col > div.text-truncate")).getText();// 断言判断修改后的帖子标题, 看是否和修改内容相同assert ele9.equals("1.5");}// 删除功能测试public void PostDelete() {// 进入帖子详情页driver.findElement(By.cssSelector("#artical-items-body > div:nth-child(1) > div > div.col > div.text-truncate > a > strong")).click();// 点击删除按钮driver.findElement(By.cssSelector("#bit-forum-content > div.page-body > div > div > div:nth-child(1) > div.col-9.card.card-lg > div.card-footer.bg-transparent.mt-auto.justify-content-end > div > div:nth-child(3) > div > a")).click();// 点击确认按钮driver.findElement(By.cssSelector("#details_artile_delete")).click();// 通过获取新界面的 url 来通过断言判断是否删除成功返回首页String homeUrl = driver.getCurrentUrl();assert homeUrl.equals("http://127.0.0.1:58080/index.html");}// 回复功能测试public void PostReply() throws InterruptedException {// 进入帖子详情页driver.findElement(By.cssSelector("#artical-items-body > div:nth-child(1) > div > div.col > div.text-truncate > a > strong")).click();// 找到回复输入框元素WebElement ele9 =driver.findElement(By.cssSelector("#article_details_reply > div.CodeMirror.cm-s-default.CodeMirror-wrap.CodeMirror-empty > div.CodeMirror-scroll > div.CodeMirror-sizer > div > div > div > div.CodeMirror-code > div > pre"));// 点击输入框Actions actions = new Actions(driver);actions.click(ele9).perform();// 输入想要发送的内容Thread.sleep(1000);actions.sendKeys("11").perform();//driver.findElement(By.cssSelector("#article_details_reply > div.CodeMirror.cm-s-default.CodeMirror-wrap.CodeMirror-empty > div.CodeMirror-scroll")).sendKeys("测试回复1");// 点击回复Thread.sleep(3000);driver.findElement(By.cssSelector("#details_btn_article_reply")).click();}
}

AddPostPage.java

/*
新帖发布的测试*/
public class AddPostPage extends Utils {public static String url = "http://127.0.0.1:58080/index.html";public AddPostPage() {super(url);}// 进入发帖界面public void AddPostEnter() throws InterruptedException {// 需要重新登陆// 返回登录页并刷新页面driver.navigate().refresh();// 重新登录driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");driver.findElement(By.cssSelector("#password")).sendKeys("123");driver.findElement(By.cssSelector("#submit")).click();// 点击 "发布帖子" 按钮 进入发帖界面driver.findElement(By.cssSelector("#bit-forum-content > div.page-header.d-print-none > div > div > div.col-auto.ms-auto.d-print-none > div > a.btn.btn-primary.d-none.d-sm-inline-block.article_post")).click();// 获取界面元素Thread.sleep(1000);String ele1 = driver.findElement(By.cssSelector("#bit-forum-content > div.page-header.d-print-none")).getText();// 断言判断是否成功进入assert ele1.equals("发新贴");}// 发布新帖测试public void AddPost() throws InterruptedException {// 获取标题输入框元素WebElement ele2 = driver.findElement(By.cssSelector("#article_post_title"));// 点击输入框Actions actions = new Actions(driver);actions.click(ele2).perform();// 输入标题actions.sendKeys("自动输入的标题2");
//        // 获取输入的标题内容
//        String ele3 = driver.findElement(By.cssSelector("#article_post_title")).getText();// 获取内容输入框元素WebElement ele4 = driver.findElement(By.cssSelector("#edit-article > div.CodeMirror.cm-s-default.CodeMirror-wrap.CodeMirror-empty > div.CodeMirror-scroll > div.CodeMirror-sizer > div > div > div > div.CodeMirror-code > div > pre"));// 点击输入框actions.click(ele4).perform();// 输入内容actions.sendKeys("自动输入的内容2").perform();// 点击发布按钮// 不能用显式等待, 发布按钮执行太快WebElement ele5 = driver.findElement(By.cssSelector("#article_post_submit"));
//        WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(3));
//        wait.until(ExpectedConditions.elementToBeClickable(ele5));// 两种点击方式: 1. 界面定位元素点击; 2. 定位元素模拟鼠标点击
//        driver.findElement(By.cssSelector("#article_post_submit")).click();Thread.sleep(2000);actions.click(ele5).perform();// 刷新页面driver.navigate().refresh();// 获取新页面第一个帖子的标题String ele6 = driver.findElement(By.cssSelector("#artical-items-body > div:nth-child(1) > div > div.col > div.text-truncate > a")).getText();// 断言判断是否发布成功assert ele6.equals("自动输入的标题2");}
}

UserInfoPage.java

/*
用户详情页测试*/
public class UserInfoPage extends Utils {public static String url = "http://127.0.0.1:58080/index.html";public UserInfoPage() {super(url);}// 进入个人中心测试public void UserInfoEnter() throws InterruptedException {// 需要重新登录// 返回登录页并刷新页面driver.navigate().refresh();// 重新登录driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");driver.findElement(By.cssSelector("#password")).sendKeys("123");driver.findElement(By.cssSelector("#submit")).click();// 点击 "用户头像" 按钮, 进入选择进入用户个人中心界面driver.findElement(By.cssSelector("body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div.nav-item.dropdown")).click();// 点击 "个人中心" 按钮, 进入个人中心driver.findElement(By.cssSelector("#index_user_settings")).click();// 获取界面元素WebElement ele1 = driver.findElement(By.cssSelector("#settings_submit_password"));WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(1));wait.until(ExpectedConditions.elementToBeClickable(ele1));String ele2 = driver.findElement(By.cssSelector("#bit-forum-content > div.page-body > div > div > div > div.col-3.d-none.d-md-block.border-end > div > div > a")).getText();// 断言判断是否成功进入assert ele2.equals("我的账户");}// 昵称, 邮箱地址, 电话号, 个人介绍 修改后都找不到可以对比的值, 人工测试都正常, 就不加入自动化脚本中了// 密码修改成功测试public void PasswordChange() {// 找到原密码输入框WebElement ele3 = driver.findElement(By.cssSelector("#settings_input_oldPassword"));// 点击原密码输入框Actions actions = new Actions(driver);actions.click(ele3).perform();// 输入原密码actions.sendKeys("123").perform();// 找到新原密码输入框WebElement ele4 = driver.findElement(By.cssSelector("#settings_input_newPassword"));// 点击新原密码输入框actions.click(ele4).perform();// 输入新原密码actions.sendKeys("123").perform();// 找到确认密码输入框WebElement ele5 = driver.findElement(By.cssSelector("#settings_input_passwordRepeat"));// 点击确认密码输入框actions.click(ele5).perform();// 输入确认密码actions.sendKeys("123").perform();// 点击修改密码按钮WebElement ele6 = driver.findElement(By.cssSelector("#settings_submit_password"));WebDriverWait wait = new WebDriverWait(driver,Duration.ofSeconds(1));wait.until(ExpectedConditions.elementToBeClickable(ele6));actions.click(ele6).perform();// 断言检查是否修改成功 (修改成功后跳转到登录页面)wait.until(ExpectedConditions.urlToBe("http://127.0.0.1:58080/sign-in.html"));String ele7 = driver.getCurrentUrl();assert ele7.equals("http://127.0.0.1:58080/sign-in.html");}// 密码修改失败 (原密码输入错误)public void PasswordChangeFail1() {// 重新登录driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");driver.findElement(By.cssSelector("#password")).sendKeys("123");driver.findElement(By.cssSelector("#submit")).click();// 点击 "用户头像" 按钮, 进入选择进入用户个人中心界面driver.findElement(By.cssSelector("body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div.nav-item.dropdown")).click();// 点击 "个人中心" 按钮, 进入个人中心driver.findElement(By.cssSelector("#index_user_settings")).click();// 找到原密码输入框WebElement ele8 = driver.findElement(By.cssSelector("#settings_input_oldPassword"));// 点击原密码输入框Actions actions = new Actions(driver);actions.click(ele8).perform();// 输入原密码actions.sendKeys("1234").perform();// 找到新原密码输入框WebElement ele9 = driver.findElement(By.cssSelector("#settings_input_newPassword"));// 点击新原密码输入框actions.click(ele9).perform();// 输入新原密码actions.sendKeys("123").perform();// 找到确认密码输入框WebElement ele10 = driver.findElement(By.cssSelector("#settings_input_passwordRepeat"));// 点击确认密码输入框actions.click(ele10).perform();// 输入确认密码actions.sendKeys("123").perform();// 点击修改密码按钮WebElement ele11 = driver.findElement(By.cssSelector("#settings_submit_password"));WebDriverWait wait = new WebDriverWait(driver,Duration.ofSeconds(1));wait.until(ExpectedConditions.elementToBeClickable(ele11));actions.click(ele11).perform();// 通过获取界面 url 来判断修改是否成功String ele12 = driver.getCurrentUrl();assert ele12.equals("http://127.0.0.1:58080/index.html");}// 密码修改失败 (确认密码错误)public void PassWordChangeFail2() {// 找到原密码输入框WebElement ele13 = driver.findElement(By.cssSelector("#settings_input_oldPassword"));// 点击原密码输入框Actions actions = new Actions(driver);actions.click(ele13).perform();// 输入原密码actions.sendKeys("123").perform();// 找到新原密码输入框WebElement ele14 = driver.findElement(By.cssSelector("#settings_input_newPassword"));// 点击新原密码输入框actions.click(ele14).perform();// 输入新原密码actions.sendKeys("123").perform();// 找到确认密码输入框WebElement ele15 = driver.findElement(By.cssSelector("#settings_input_passwordRepeat"));// 点击确认密码输入框actions.click(ele15).perform();// 输入确认密码actions.sendKeys("1234").perform();// 点击修改密码按钮WebElement ele16 = driver.findElement(By.cssSelector("#settings_submit_password"));WebDriverWait wait = new WebDriverWait(driver,Duration.ofSeconds(1));wait.until(ExpectedConditions.elementToBeClickable(ele16));actions.click(ele16).perform();// 通过获取界面 url 来判断修改是否成功String ele17 = driver.getCurrentUrl();assert ele17.equals("http://127.0.0.1:58080/index.html");}
}

MyPostsPage.java

/*
我的帖子页测试*/
public class MyPostsPage extends Utils {public static String url = "http://127.0.0.1:58080/index.html";public MyPostsPage() {super(url);}// 进入我的帖子测试public void MyPostEter() {// 需要重新登录// 返回登录页并刷新页面driver.navigate().refresh();// 重新登录driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");driver.findElement(By.cssSelector("#password")).sendKeys("123");driver.findElement(By.cssSelector("#submit")).click();// 点击 "用户头像" 按钮, 进入选择进入用户我的帖子界面driver.findElement(By.cssSelector("body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div.nav-item.dropdown")).click();// 点击 "我的帖子" 按钮, 进入个人中心driver.findElement(By.cssSelector("#index_user_profile")).click();// 获取界面元素WebElement ele1 = driver.findElement(By.cssSelector("#profile_article_body > li:nth-child(1) > div.card.timeline-event-card > div > div > div > div > div.text-truncate"));WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(1));wait.until(ExpectedConditions.elementToBeClickable(ele1));String ele2 = driver.findElement(By.cssSelector("#bit-forum-content > div.page-body > div > div > div.col-lg-4 > div > div > div > div > h2")).getText();// 断言判断是否成功进入assert ele2.equals("个人介绍");}// 点击帖子进入帖子详情页// 因为帖子是动态变化的, 无法选中标题从而进入, 人为测试正常, 自动化测试脚本跳过public void PostEnterSuc() {// 选择一篇帖子标题, 点击进入driver.findElement(By.cssSelector("#profile_article_body > li:nth-child(1) > div.card.timeline-event-card > div > div > div > div > div.text-truncate")).click();// 获取页面元素WebElement ele3 = driver.findElement(By.cssSelector("#details_btn_like_count"));WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(1));wait.until(ExpectedConditions.elementToBeClickable(ele3));// 断言判断是否进入assert ele3.equals("点赞");}
}

PageByNoLogin.java

/*
所以没有登录界面的测试*/
public class PageByNoLogin extends Utils {public static String url = "http://127.0.0.1:58080/index.html";public PageByNoLogin() {super(url);}// 判断是否为未登录状态public void ByNoLogin() throws InterruptedException {// 刷新页面driver.navigate().refresh();// 获取界面 urlThread.sleep(1000);String url1 = driver.getCurrentUrl();System.out.println(url1);// 断言判断是否为登录页面的 urlWebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(3));wait.until(ExpectedConditions.urlToBe("http://127.0.0.1:58080/sign-in.html"));assert url1.equals("http://127.0.0.1:58080/sign-in.html");}
}

// 部分代码在其他设备上运行可能会出现报错, 我们可以在评论区交流
