4.集群节点的健康状态变动时的数据同步

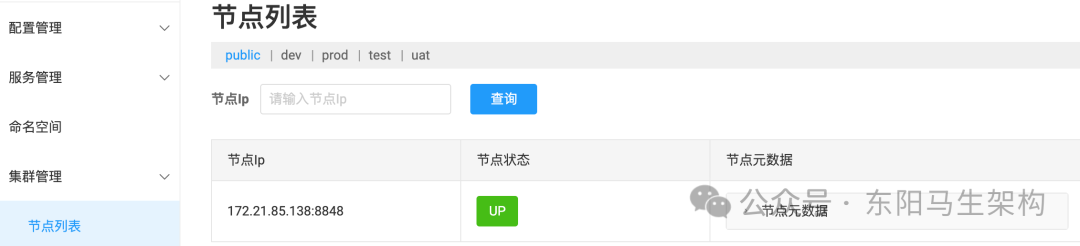

(1)Nacos后台管理的集群管理模块介绍
在集群管理模块下，可以看到每个节点的状态和元数据。节点IP就是节点的IP地址以及端口，节点状态就是标识当前节点是否可用，节点元数据就是相关的Raft信息。
其中节点元数据示例如下：
{// 最后刷新时间"lastRefreshTime": 1674093895774,// raft 元信息"raftMetaData": {"metaDataMap": {"naming_persistent_service": {// leader IP 地址"leader": "10.0.16.3:7849",// raft 分组节点"raftGroupMember": ["10.0.16.3:7850","10.0.16.3:7848","10.0.16.3:7849"],"term": 1}}},// raft 端口"raftPort": "7849",// Nacos 版本"version": "1.4.1"

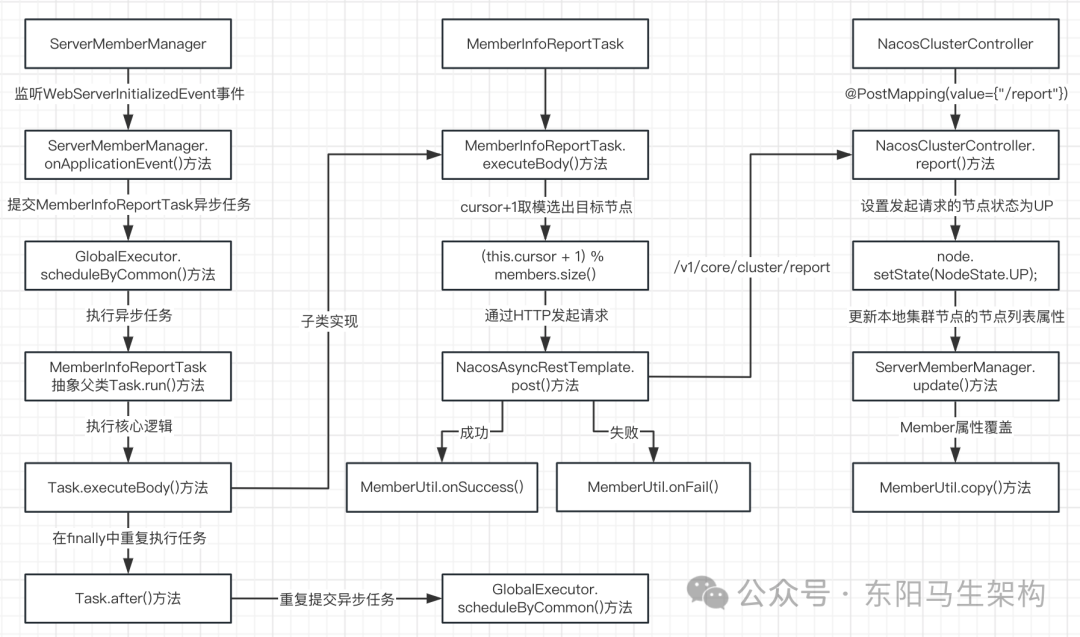

}(2)集群节点启动时开启节点健康检查任务的源码
因为ServerMemberManager这个Bean会监听WebServerInitializedEvent事件，所以Spring启动时会执行ServerMemberManager的onApplicationEvent()方法。该方法会在集群模式下开启一个集群节点的健康检查任务，也就是会执行MemberInfoReportTask的run()方法，即执行Task的run()方法。
由于MemberInfoReportTask类继承了使用模版设计模式的抽象父类Task，所以执行Task的run()方法时：会先执行MemberInfoReportTask的executeBody()方法，然后会执行MemberInfoReportTask的after()方法。
在MemberInfoReportTask的executeBody()方法中：首先会获取除自身以外的其他集群节点List，然后通过对cursor变量自增后取模，来选出本次请求的目标节点Member，最后通过HTTP方式(/v1/core/cluster/report)对目标节点Member发起请求。如果目标节点返回成功，则执行MemberUtil的onSuccess()方法。如果目标节点返回失败，则执行MemberUtil的onFail()方法，并且把目标节点Member的state属性修改为DOWN。
最后在MemberInfoReportTask的after()方法中：又会重新提交这个MemberInfoReportTask健康检查任务，反复执行。
@Component(value = "serverMemberManager")
public class ServerMemberManager implements ApplicationListener<WebServerInitializedEvent> {private final NacosAsyncRestTemplate asyncRestTemplate = HttpClientBeanHolder.getNacosAsyncRestTemplate(Loggers.CORE);//Address information for the local node.private String localAddress;//Broadcast this node element information task.private final MemberInfoReportTask infoReportTask = new MemberInfoReportTask();...//监听Spring启动时发布的WebServerInitializedEvent事件@Overridepublic void onApplicationEvent(WebServerInitializedEvent event) {//设置当前集群节点的状态为默认状态getSelf().setState(NodeState.UP);//集群模式下才启动集群节点的健康检查任务if (!EnvUtil.getStandaloneMode()) {//开启一个延时任务，执行MemberInfoReportTask.run()方法GlobalExecutor.scheduleByCommon(this.infoReportTask, 5_000L);}EnvUtil.setPort(event.getWebServer().getPort());EnvUtil.setLocalAddress(this.localAddress);Loggers.CLUSTER.info("This node is ready to provide external services");}... class MemberInfoReportTask extends Task {private final GenericType<RestResult<String>> reference = new GenericType<RestResult<String>>() { };private int cursor = 0;@Overrideprotected void executeBody() {//获取除自身节点外的其他集群节点List<Member> members = ServerMemberManager.this.allMembersWithoutSelf();if (members.isEmpty()) {return;}//轮询请求：每执行一次executeBody()方法，cursor就加1，然后根据cursor去获取对应的某集群节点Memberthis.cursor = (this.cursor + 1) % members.size();Member target = members.get(cursor);Loggers.CLUSTER.debug("report the metadata to the node : {}", target.getAddress());//获取URL参数：/v1/core/cluster/reportfinal String url = HttpUtils.buildUrl(false, target.getAddress(), EnvUtil.getContextPath(), Commons.NACOS_CORE_CONTEXT, "/cluster/report");try {//通过HTTP发起请求，向某集群节点Member发起健康检查请求asyncRestTemplate.post(url, Header.newInstance().addParam(Constants.NACOS_SERVER_HEADER, VersionUtils.version),Query.EMPTY, getSelf(), reference.getType(), new Callback<String>() {@Overridepublic void onReceive(RestResult<String> result) {if (result.getCode() == HttpStatus.NOT_IMPLEMENTED.value() || result.getCode() == HttpStatus.NOT_FOUND.value()) {Loggers.CLUSTER.warn("{} version is too low, it is recommended to upgrade the version : {}", target, VersionUtils.version);return;}if (result.ok()) {//如果请求成功，则设置集群节点Member的状态为NodeState.UPMemberUtil.onSuccess(ServerMemberManager.this, target);} else {//如果请求失败，则设置集群节点Member的状态为NodeState.DOWNLoggers.CLUSTER.warn("failed to report new info to target node : {}, result : {}", target.getAddress(), result);MemberUtil.onFail(ServerMemberManager.this, target);}}@Overridepublic void onError(Throwable throwable) {Loggers.CLUSTER.error("failed to report new info to target node : {}, error : {}", target.getAddress(), ExceptionUtil.getAllExceptionMsg(throwable));//如果请求失败，则设置集群节点Member的状态为NodeState.DOWNMemberUtil.onFail(ServerMemberManager.this, target, throwable);}@Overridepublic void onCancel() {}});} catch (Throwable ex) {Loggers.CLUSTER.error("failed to report new info to target node : {}, error : {}", target.getAddress(), ExceptionUtil.getAllExceptionMsg(ex));}}@Overrideprotected void after() {//重新提交这个节点健康检查的异步任务，从而实现反复执行GlobalExecutor.scheduleByCommon(this, 2_000L);}}
}//Task使用了模版方法
public abstract class Task implements Runnable {protected volatile boolean shutdown = false;@Overridepublic void run() {if (shutdown) {return;}try {//执行异步任务的核心逻辑，这个方法是一个抽象方法，交给子类去具体实现executeBody();} catch (Throwable t) {Loggers.CORE.error("this task execute has error : {}", ExceptionUtil.getStackTrace(t));} finally {if (!shutdown) {after();}}}protected abstract void executeBody();protected void after() {}public void shutdown() {shutdown = true;}
}public class MemberUtil {...//Successful processing of the operation on the node.public static void onSuccess(final ServerMemberManager manager, final Member member) {final NodeState old = member.getState();manager.getMemberAddressInfos().add(member.getAddress());member.setState(NodeState.UP);member.setFailAccessCnt(0);if (!Objects.equals(old, member.getState())) {manager.notifyMemberChange();}}public static void onFail(final ServerMemberManager manager, final Member member) {onFail(manager, member, ExceptionUtil.NONE_EXCEPTION);}//Failure processing of the operation on the node.public static void onFail(final ServerMemberManager manager, final Member member, Throwable ex) {manager.getMemberAddressInfos().remove(member.getAddress());final NodeState old = member.getState();member.setState(NodeState.SUSPICIOUS);member.setFailAccessCnt(member.getFailAccessCnt() + 1);int maxFailAccessCnt = EnvUtil.getProperty("nacos.core.member.fail-access-cnt", Integer.class, 3);if (member.getFailAccessCnt() > maxFailAccessCnt || StringUtils.containsIgnoreCase(ex.getMessage(), TARGET_MEMBER_CONNECT_REFUSE_ERRMSG)) {member.setState(NodeState.DOWN);}if (!Objects.equals(old, member.getState())) {manager.notifyMemberChange();}}...
}public class GlobalExecutor {private static final ScheduledExecutorService COMMON_EXECUTOR = ExecutorFactory.Managed.newScheduledExecutorService(ClassUtils.getCanonicalName(GlobalExecutor.class), 4,new NameThreadFactory("com.alibaba.nacos.core.common"));...public static void scheduleByCommon(Runnable runnable, long delayMs) {if (COMMON_EXECUTOR.isShutdown()) {return;}//在指定的延迟后执行某项任务COMMON_EXECUTOR.schedule(runnable, delayMs, TimeUnit.MILLISECONDS);}...
}public final class ExecutorFactory {...public static final class Managed {private static final String DEFAULT_NAMESPACE = "nacos";private static final ThreadPoolManager THREAD_POOL_MANAGER = ThreadPoolManager.getInstance();...//Create a new scheduled executor service with input thread factory and register to manager.public static ScheduledExecutorService newScheduledExecutorService(final String group, final int nThreads, final ThreadFactory threadFactory) {ScheduledExecutorService executorService = Executors.newScheduledThreadPool(nThreads, threadFactory);THREAD_POOL_MANAGER.register(DEFAULT_NAMESPACE, group, executorService);return executorService;}...}...
}(3)集群节点收到健康检查请求后的数据同步源码
集群节点收到某集群节点发来的"/v1/core/cluster/report"请求后，会调用NacosClusterController的report()方法来处理请求。在report()方法中，会把发起请求的来源节点状态直接设置成UP状态，然后调用ServerMemberManager的update()方法来更新来源节点属性。在update()方法中，会把存放在serverList中对应的节点Member进行更新，也就是通过MemberUtil的copy()方法覆盖老对象的属性来实现更新。
注意：因为serverList属性在集群中的每个节点都存在一份，所以节点收到健康检查请求后，要对其serverList属性中的节点进行更新。
@RestController
@RequestMapping(Commons.NACOS_CORE_CONTEXT + "/cluster")
public class NacosClusterController {private final ServerMemberManager memberManager;...//Other nodes return their own metadata information.@PostMapping(value = {"/report"})public RestResult<String> report(@RequestBody Member node) {if (!node.check()) {return RestResultUtils.failedWithMsg(400, "Node information is illegal");}LoggerUtils.printIfDebugEnabled(Loggers.CLUSTER, "node state report, receive info : {}", node);//能够正常请求到该接口的集群节点肯定是健康的，所以直接设置其节点状态为UPnode.setState(NodeState.UP);node.setFailAccessCnt(0);//修改集群节点boolean result = memberManager.update(node);return RestResultUtils.success(Boolean.toString(result));}...
}@Component(value = "serverMemberManager")
public class ServerMemberManager implements ApplicationListener<WebServerInitializedEvent> {//Cluster node list.private volatile ConcurrentSkipListMap<String, Member> serverList;...//member information update.public boolean update(Member newMember) {Loggers.CLUSTER.debug("member information update : {}", newMember);String address = newMember.getAddress();if (!serverList.containsKey(address)) {return false;}//更新serverList中的数据serverList.computeIfPresent(address, (s, member) -> {//如果服务状态不健康，则直接移除if (NodeState.DOWN.equals(newMember.getState())) {memberAddressInfos.remove(newMember.getAddress());}//对比信息是否有做改变boolean isPublishChangeEvent = MemberUtil.isBasicInfoChanged(newMember, member);//修改lastRefreshTime为当前时间newMember.setExtendVal(MemberMetaDataConstants.LAST_REFRESH_TIME, System.currentTimeMillis());//属性覆盖MemberUtil.copy(newMember, member);if (isPublishChangeEvent) {//member basic data changes and all listeners need to be notified//如果有做改变，需要发布相关事件通知notifyMemberChange();}return member;});return true;}...
}(4)总结
在Nacos集群架构下，集群节点间的健康状态如何进行同步。简单来说，集群节点间是会相互进行通信的。如果通信失败，那么就会把通信节点的状态属性修改为DOWN。
5.集群新增节点时如何同步已有服务实例数据

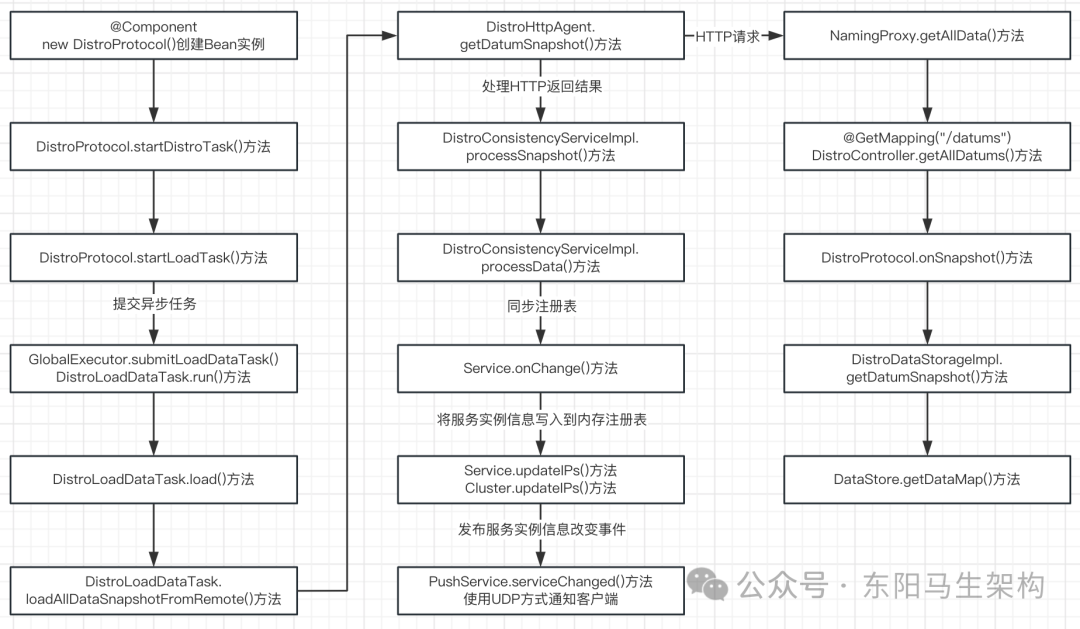

(1)节点启动时加载服务实例数据的异步任务
Nacos服务端会有一个DistroProtocol类，它是一个Bean对象，在Spring项目启动时会创建这个DistroProtocol类型的Bean。
创建DistroProtocol类型的Bean时，会执行DistroProtocol的构造方法，从而调用DistroProtocol的startLoadTask()方法开启一个加载数据的异步任务。
在DistroProtocol的startLoadTask()方法中，会提交一个异步任务，并且会通过传入一个回调方法来标志是否已初始化成功。其中提交的任务类型是DistroLoadDataTask，所以会执行DistroLoadDataTask的run()方法，接着会执行DistroLoadDataTask的load()方法，然后执行该任务类的loadAllDataSnapshotFromRemote()方法，从而获取其他集群节点上的全部服务实例数据并更新本地注册表。
在loadAllDataSnapshotFromRemote()方法中，首先会遍历除自身节点外的其他集群节点。然后调用DistroHttpAgent的getDatumSnapshot()方法，通过HTTP请求"/v1/ns/distro/datums"获取目标节点的全部服务实例数据。接着再调用DistroConsistencyServiceImpl的processSnapshot()方法，将获取到的全部服务实例数据写入到本地注册表中。其中只要有一个集群节点数据同步成功，那么这个方法就结束。否则就继续遍历下一个集群节点，获取全部服务实例数据然后同步本地。
Nacos服务端在处理服务实例注册时，采用的是内存队列 + 异步任务。异步任务会调用listener的onChange()方法利用写时复制来更新本地注册表。而processSnapshot()方法也会调用listener的onChange()方法来更新注册表，其中listener的onChange()方法对应的实现其实就是Service的onChange()方法。
@Component
public class DistroProtocol {...public DistroProtocol(ServerMemberManager memberManager, DistroComponentHolder distroComponentHolder, DistroTaskEngineHolder distroTaskEngineHolder, DistroConfig distroConfig) {this.memberManager = memberManager;this.distroComponentHolder = distroComponentHolder;this.distroTaskEngineHolder = distroTaskEngineHolder;this.distroConfig = distroConfig;//开启一个异步任务startDistroTask();}private void startDistroTask() {if (EnvUtil.getStandaloneMode()) {isInitialized = true;return;}startVerifyTask();//提交一个加载数据的异步任务startLoadTask();}private void startLoadTask() {//加载数据的回调方法，修改isInitialized属性，标识是否初始化成功DistroCallback loadCallback = new DistroCallback() {@Overridepublic void onSuccess() {isInitialized = true;}@Overridepublic void onFailed(Throwable throwable) {isInitialized = false;}};//提交异步任务GlobalExecutor.submitLoadDataTask(new DistroLoadDataTask(memberManager, distroComponentHolder, distroConfig, loadCallback));}...
}//Distro load data task.
public class DistroLoadDataTask implements Runnable {...@Overridepublic void run() {try {load();if (!checkCompleted()) {GlobalExecutor.submitLoadDataTask(this, distroConfig.getLoadDataRetryDelayMillis());} else {loadCallback.onSuccess();Loggers.DISTRO.info("[DISTRO-INIT] load snapshot data success");}} catch (Exception e) {loadCallback.onFailed(e);Loggers.DISTRO.error("[DISTRO-INIT] load snapshot data failed. ", e);}}private void load() throws Exception {while (memberManager.allMembersWithoutSelf().isEmpty()) {Loggers.DISTRO.info("[DISTRO-INIT] waiting server list init...");TimeUnit.SECONDS.sleep(1);}while (distroComponentHolder.getDataStorageTypes().isEmpty()) {Loggers.DISTRO.info("[DISTRO-INIT] waiting distro data storage register...");TimeUnit.SECONDS.sleep(1);}for (String each : distroComponentHolder.getDataStorageTypes()) {if (!loadCompletedMap.containsKey(each) || !loadCompletedMap.get(each)) {loadCompletedMap.put(each, loadAllDataSnapshotFromRemote(each));}}}private boolean loadAllDataSnapshotFromRemote(String resourceType) {DistroTransportAgent transportAgent = distroComponentHolder.findTransportAgent(resourceType);DistroDataProcessor dataProcessor = distroComponentHolder.findDataProcessor(resourceType);if (null == transportAgent || null == dataProcessor) {Loggers.DISTRO.warn("[DISTRO-INIT] Can't find component for type {}, transportAgent: {}, dataProcessor: {}", resourceType, transportAgent, dataProcessor);return false;}//遍历除自身节点外的其他节点for (Member each : memberManager.allMembersWithoutSelf()) {try {Loggers.DISTRO.info("[DISTRO-INIT] load snapshot {} from {}", resourceType, each.getAddress());//调用DistroHttpAgent.getDatumSnapshot()方法，通过HTTP方式获取其他集群节点的数据DistroData distroData = transportAgent.getDatumSnapshot(each.getAddress());//调用DistroConsistencyServiceImpl.processSnapshot()方法，同步返回结果到自身节点的内存注册表boolean result = dataProcessor.processSnapshot(distroData);Loggers.DISTRO.info("[DISTRO-INIT] load snapshot {} from {} result: {}", resourceType, each.getAddress(), result);//只要有一个集群节点返回全部数据并同步成功则结束if (result) {return true;}} catch (Exception e) {Loggers.DISTRO.error("[DISTRO-INIT] load snapshot {} from {} failed.", resourceType, each.getAddress(), e);}}return false;}...
}public class DistroHttpAgent implements DistroTransportAgent {...@Overridepublic DistroData getDatumSnapshot(String targetServer) {try {//通过NamingProxy发起HTTP请求byte[] allDatum = NamingProxy.getAllData(targetServer);return new DistroData(new DistroKey("snapshot", KeyBuilder.INSTANCE_LIST_KEY_PREFIX), allDatum);} catch (Exception e) {throw new DistroException(String.format("Get snapshot from %s failed.", targetServer), e);}}...
}public class NamingProxy {...//获取目标节点的全部数据public static byte[] getAllData(String server) throws Exception {Map<String, String> params = new HashMap<>(8);RestResult<String> result = HttpClient.httpGet("http://" + server + EnvUtil.getContextPath() + UtilsAndCommons.NACOS_NAMING_CONTEXT + ALL_DATA_GET_URL,new ArrayList<>(),params);if (result.ok()) {return result.getData().getBytes();}throw new IOException("failed to req API: " + "http://" + server + EnvUtil.getContextPath()+ UtilsAndCommons.NACOS_NAMING_CONTEXT + ALL_DATA_GET_URL + ". code: " + result.getCode() + " msg: "+ result.getMessage());}...
}@DependsOn("ProtocolManager")
@org.springframework.stereotype.Service("distroConsistencyService")
public class DistroConsistencyServiceImpl implements EphemeralConsistencyService, DistroDataProcessor {...@Overridepublic boolean processSnapshot(DistroData distroData) {try {return processData(distroData.getContent());} catch (Exception e) {return false;}}private boolean processData(byte[] data) throws Exception {if (data.length > 0) {//序列化成对象Map<String, Datum<Instances>> datumMap = serializer.deserializeMap(data, Instances.class);//创建空的Servicefor (Map.Entry<String, Datum<Instances>> entry : datumMap.entrySet()) {...}for (Map.Entry<String, Datum<Instances>> entry : datumMap.entrySet()) {if (!listeners.containsKey(entry.getKey())) {// Should not happen:Loggers.DISTRO.warn("listener of {} not found.", entry.getKey());continue;}try {//更新本地注册表for (RecordListener listener : listeners.get(entry.getKey())) {listener.onChange(entry.getKey(), entry.getValue().value);}} catch (Exception e) {Loggers.DISTRO.error("[NACOS-DISTRO] error while execute listener of key: {}", entry.getKey(), e);continue;}//Update data store if listener executed successfully:dataStore.put(entry.getKey(), entry.getValue());}}return true;}...
}总结：Nacos服务端集群节点启动时，会创建一个DistroProtocol类型的Bean对象，在这个DistroProtocol类型的Bean对象的构造方法会开启一个异步任务。该异步任务的主要逻辑是通过HTTP方式从其他集群节点获取服务数据，然后把获取到的服务实例数据更新到本地的内存注册表，完成数据同步。而且只要成功从某一个集群节点完成数据同步，那整个任务逻辑就结束。
此外，向某个集群节点获取全部服务实例数据时，是向"/v1/ns/distro/datums"接口发起HTTP请求来进行获取的。
(2)节点处理获取全部服务实例数据请求的源码
Nacos集群节点收到"/v1/ns/distro/datums"的HTTP请求后，便会执行DistroController的getAllDatums()方法。也就是调用DistroProtocol的onSnapshot()方法获取数据，然后直接返回。接着会调用DistroDataStorageImpl的getDatumSnapshot()方法。
getDatumSnapshot()方法会从DataStore的getDataMap()方法获取结果。进行服务实例注册时，会把服务实例信息存一份放在DataStore的Map中。进行服务实例同步时，也会把服务实例信息存放到DataStore的Map中。所以在DataStore里，会包含整个服务实例信息的数据。这里获取全部服务实例数据的接口，也是利用DataStore来实现的，而不是从内存注册表中获取。
@RestController
@RequestMapping(UtilsAndCommons.NACOS_NAMING_CONTEXT + "/distro")
public class DistroController {@Autowiredprivate DistroProtocol distroProtocol;...//Get all datums.@GetMapping("/datums")public ResponseEntity getAllDatums() {DistroData distroData = distroProtocol.onSnapshot(KeyBuilder.INSTANCE_LIST_KEY_PREFIX);return ResponseEntity.ok(distroData.getContent());}...
}@Component
public class DistroProtocol {...//Query all datum snapshot.public DistroData onSnapshot(String type) {DistroDataStorage distroDataStorage = distroComponentHolder.findDataStorage(type);if (null == distroDataStorage) {Loggers.DISTRO.warn("[DISTRO] Can't find data storage for received key {}", type);return new DistroData(new DistroKey("snapshot", type), new byte[0]);}//调用DistroDataStorageImpl.getDatumSnapshot()方法return distroDataStorage.getDatumSnapshot();}...
}public class DistroDataStorageImpl implements DistroDataStorage { private final DataStore dataStore;...@Overridepublic DistroData getDatumSnapshot() {Map<String, Datum> result = dataStore.getDataMap();//对服务实例数据进行序列化byte[] dataContent = ApplicationUtils.getBean(Serializer.class).serialize(result);DistroKey distroKey = new DistroKey("snapshot", KeyBuilder.INSTANCE_LIST_KEY_PREFIX);//封装一个DistroData对象并返回return new DistroData(distroKey, dataContent);}...
}//Store of data. 用于存储所有已注册的服务实例数据
@Component
public class DataStore {private Map<String, Datum> dataMap = new ConcurrentHashMap<>(1024);public void put(String key, Datum value) {dataMap.put(key, value);}public Datum remove(String key) {return dataMap.remove(key);}public Set<String> keys() {return dataMap.keySet();}public Datum get(String key) {return dataMap.get(key);}public boolean contains(String key) {return dataMap.containsKey(key);}public Map<String, Datum> batchGet(List<String> keys) {Map<String, Datum> map = new HashMap<>(128);for (String key : keys) {Datum datum = dataMap.get(key);if (datum == null) {continue;}map.put(key, datum);}return map;}...public Map<String, Datum> getDataMap() {return dataMap;}
}注意：DataStore数据最后还是存到内存的。通过使用DataStore，可以实现以下功能和好处：
一.数据持久化
DataStore可将节点数据持久化到磁盘或其他介质，以确保数据的持久性。这样即使系统重启或发生故障，节点数据也能够得到恢复和保留。毕竟Datum的key是ServiceName、value是Instance实例列表，而Instance实例中又会包含所属的ClusterName、IP和Port，所以根据DataStore可以恢复完整的内存注册表。
Map<string, map> serviceMap;
Map(namespace, Map(group::serviceName, Service));二.数据同步
DataStore可以协调和同步节点数据的访问和更新。当多个节点同时注册或更新数据时，DataStore可确保数据的一致性和正确性，避免数据冲突和不一致的情况。
三.数据管理
DataStore提供了对节点数据的管理功能，包括增加、更新、删除等操作。通过使用适当的数据结构和算法，可以高效地管理大量的节点数据，并支持快速的数据访问和查询。
四.数据访问控制
DataStore可以实现对节点数据的访问控制和权限管理，只有具有相应权限的节点或用户才能访问和修改特定的节点数据，提高数据的安全性和保密性。
DataStore在Nacos中充当了节点数据的中央存储和管理器。通过提供持久化 + 同步 + 管理 + 访问控制等功能，确保节点数据的可靠性 + 一致性 + 安全性，是实现节点数据存储和操作的核心组件之一。
(3)总结
Nacos集群架构下新增一个集群节点时，新节点会如何进行服务数据同步：
首先利用了DistroProtocol类的Bean对象的构造方法开启异步任务，通过HTTP方式去请求其他集群节点的全部数据。
当新节点获取全部数据后，会调用Service的onChange()方法，然后利用写时复制机制更新本地内存注册表。
Nacos集群节点在处理获取全部服务实例数据的请求时，并不是从内存注册表中获取的，而是通过DataStore来获取。
