ESP-S3-N16R8连接OV2640

1.首选项：

管理器地址：

https://dl.espressif.com/dl/package_esp32_index.json

等待刷新完：

2.Adruino安装esp32板子

3.打开示例：

开发板：

查看开发板与CAMl链接的引脚图：

4.与此类型想同：

因此修改宏定义：

5.下载程序：

连接时按住BOOT键：

下载完成：

6.打开串口+链接串口：

按下RST键：

看到wifi已经链接成功；并给与了IP：

7.链接相同wifi;登录网页：

192.168.2.101

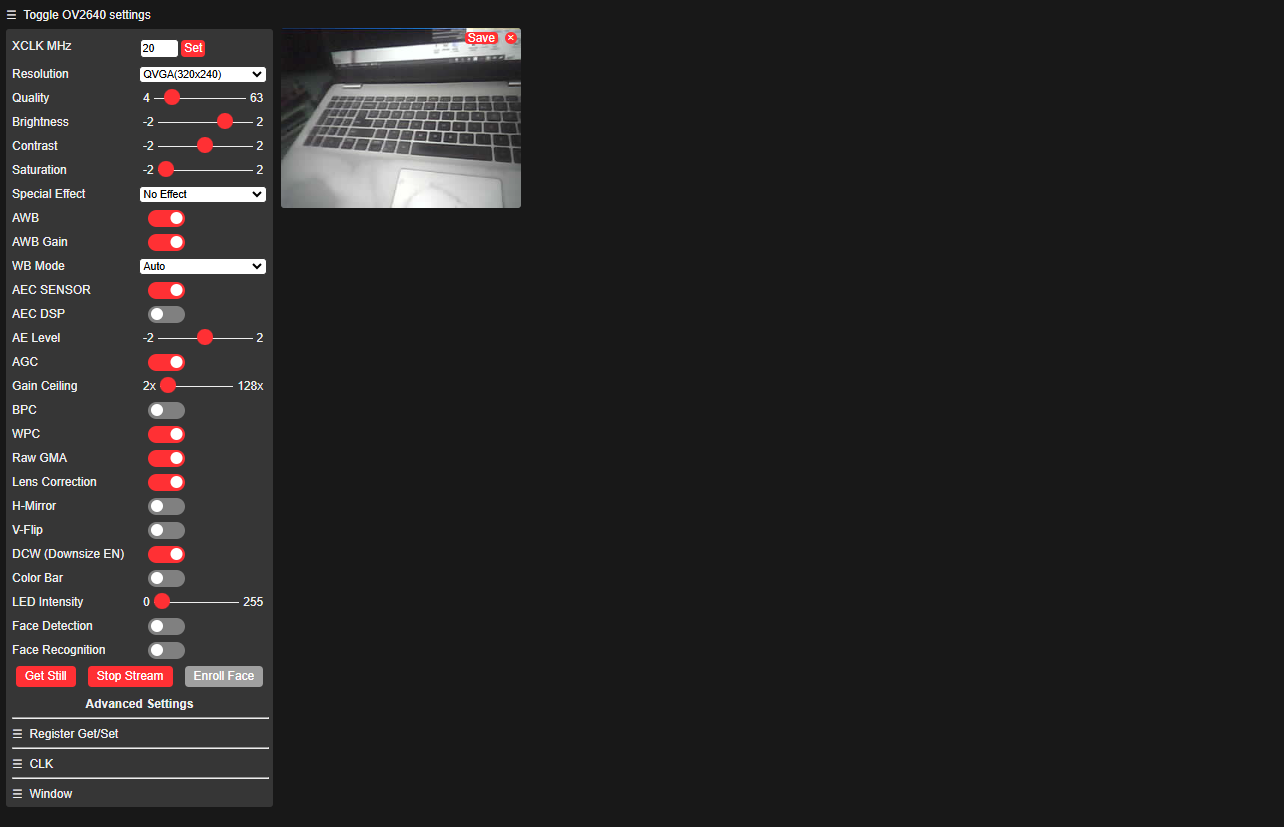

8.如果点击Start Stream。只能出现save和X。只需要点击X。重新点击Start Stream，就可以看见图像了（此处我备困住许久，以为硬件问题。最终原来如此）。

#include "esp_camera.h"
#include <WiFi.h>//
// WARNING!!! PSRAM IC required for UXGA resolution and high JPEG quality
//            Ensure ESP32 Wrover Module or other board with PSRAM is selected
//            Partial images will be transmitted if image exceeds buffer size
//
//            You must select partition scheme from the board menu that has at least 3MB APP space.
//            Face Recognition is DISABLED for ESP32 and ESP32-S2, because it takes up from 15
//            seconds to process single frame. Face Detection is ENABLED if PSRAM is enabled as well// ===================
// Select camera model
// ===================
//#define CAMERA_MODEL_WROVER_KIT // Has PSRAM
// #define CAMERA_MODEL_ESP_EYE // Has PSRAM
#define CAMERA_MODEL_ESP32S3_EYE // Has PSRAM
//#define CAMERA_MODEL_M5STACK_PSRAM // Has PSRAM
//#define CAMERA_MODEL_M5STACK_V2_PSRAM // M5Camera version B Has PSRAM
//#define CAMERA_MODEL_M5STACK_WIDE // Has PSRAM
//#define CAMERA_MODEL_M5STACK_ESP32CAM // No PSRAM
//#define CAMERA_MODEL_M5STACK_UNITCAM // No PSRAM
//#define CAMERA_MODEL_AI_THINKER // Has PSRAM
//#define CAMERA_MODEL_TTGO_T_JOURNAL // No PSRAM
//#define CAMERA_MODEL_XIAO_ESP32S3 // Has PSRAM
// ** Espressif Internal Boards **
//#define CAMERA_MODEL_ESP32_CAM_BOARD
//#define CAMERA_MODEL_ESP32S2_CAM_BOARD
//#define CAMERA_MODEL_ESP32S3_CAM_LCD
//#define CAMERA_MODEL_DFRobot_FireBeetle2_ESP32S3 // Has PSRAM
//#define CAMERA_MODEL_DFRobot_Romeo_ESP32S3 // Has PSRAM
#include "camera_pins.h"// ===========================
// Enter your WiFi credentials
// ===========================
const char* ssid = "德威智泊--车间";
const char* password = "12345678";void startCameraServer();
void setupLedFlash(int pin);void setup() {Serial.begin(115200);Serial.setDebugOutput(true);Serial.println();camera_config_t config;config.ledc_channel = LEDC_CHANNEL_0;config.ledc_timer = LEDC_TIMER_0;config.pin_d0 = Y2_GPIO_NUM;config.pin_d1 = Y3_GPIO_NUM;config.pin_d2 = Y4_GPIO_NUM;config.pin_d3 = Y5_GPIO_NUM;config.pin_d4 = Y6_GPIO_NUM;config.pin_d5 = Y7_GPIO_NUM;config.pin_d6 = Y8_GPIO_NUM;config.pin_d7 = Y9_GPIO_NUM;config.pin_xclk = XCLK_GPIO_NUM;config.pin_pclk = PCLK_GPIO_NUM;config.pin_vsync = VSYNC_GPIO_NUM;config.pin_href = HREF_GPIO_NUM;config.pin_sccb_sda = SIOD_GPIO_NUM;config.pin_sccb_scl = SIOC_GPIO_NUM;config.pin_pwdn = PWDN_GPIO_NUM;config.pin_reset = RESET_GPIO_NUM;config.xclk_freq_hz = 20000000;config.frame_size = FRAMESIZE_UXGA;config.pixel_format = PIXFORMAT_JPEG; // for streaming//config.pixel_format = PIXFORMAT_RGB565; // for face detection/recognitionconfig.grab_mode = CAMERA_GRAB_WHEN_EMPTY;config.fb_location = CAMERA_FB_IN_PSRAM;config.jpeg_quality = 12;config.fb_count = 1;// if PSRAM IC present, init with UXGA resolution and higher JPEG quality//                      for larger pre-allocated frame buffer.if(config.pixel_format == PIXFORMAT_JPEG){if(psramFound()){config.jpeg_quality = 10;config.fb_count = 2;config.grab_mode = CAMERA_GRAB_LATEST;} else {// Limit the frame size when PSRAM is not availableconfig.frame_size = FRAMESIZE_SVGA;config.fb_location = CAMERA_FB_IN_DRAM;}} else {// Best option for face detection/recognitionconfig.frame_size = FRAMESIZE_240X240;
#if CONFIG_IDF_TARGET_ESP32S3config.fb_count = 2;
#endif}#if defined(CAMERA_MODEL_ESP_EYE)pinMode(13, INPUT_PULLUP);pinMode(14, INPUT_PULLUP);
#endif// camera initesp_err_t err = esp_camera_init(&config);if (err != ESP_OK) {Serial.printf("Camera init failed with error 0x%x", err);return;}sensor_t * s = esp_camera_sensor_get();// initial sensors are flipped vertically and colors are a bit saturatedif (s->id.PID == OV2640_PID) {s->set_vflip(s, 1); // flip it backs->set_brightness(s, 1); // up the brightness just a bits->set_saturation(s, -2); // lower the saturation}// drop down frame size for higher initial frame rateif(config.pixel_format == PIXFORMAT_JPEG){s->set_framesize(s, FRAMESIZE_QVGA);}#if defined(CAMERA_MODEL_M5STACK_WIDE) || defined(CAMERA_MODEL_M5STACK_ESP32CAM)s->set_vflip(s, 1);s->set_hmirror(s, 1);
#endif#if defined(CAMERA_MODEL_ESP32S3_EYE)s->set_vflip(s, 1);
#endif// Setup LED FLash if LED pin is defined in camera_pins.h
#if defined(LED_GPIO_NUM)setupLedFlash(LED_GPIO_NUM);
#endifWiFi.begin(ssid, password);WiFi.setSleep(false);while (WiFi.status() != WL_CONNECTED) {delay(500);Serial.print(".");}Serial.println("");Serial.println("WiFi connected");startCameraServer();Serial.print("Camera Ready! Use 'http://");Serial.print(WiFi.localIP());Serial.println("' to connect");
}void loop() {// Do nothing. Everything is done in another task by the web serverdelay(10000);
}

串口信息：

报错是因为闪光灯，可以不用管；

9.修改AP模式不用链接WIFI:直接即可访问 Web 服务器。

#include "esp_camera.h"
#include <WiFi.h>//
// WARNING!!! PSRAM IC required for UXGA resolution and high JPEG quality
//            Ensure ESP32 Wrover Module or other board with PSRAM is selected
//            Partial images will be transmitted if image exceeds buffer size
//
//            You must select partition scheme from the board menu that has at least 3MB APP space.
//            Face Recognition is DISABLED for ESP32 and ESP32-S2, because it takes up from 15
//            seconds to process single frame. Face Detection is ENABLED if PSRAM is enabled as well// ===================
// Select camera model
// ===================
//#define CAMERA_MODEL_WROVER_KIT // Has PSRAM
// #define CAMERA_MODEL_ESP_EYE // Has PSRAM
#define CAMERA_MODEL_ESP32S3_EYE // Has PSRAM
//#define CAMERA_MODEL_M5STACK_PSRAM // Has PSRAM
//#define CAMERA_MODEL_M5STACK_V2_PSRAM // M5Camera version B Has PSRAM
//#define CAMERA_MODEL_M5STACK_WIDE // Has PSRAM
//#define CAMERA_MODEL_M5STACK_ESP32CAM // No PSRAM
//#define CAMERA_MODEL_M5STACK_UNITCAM // No PSRAM
//#define CAMERA_MODEL_AI_THINKER // Has PSRAM
//#define CAMERA_MODEL_TTGO_T_JOURNAL // No PSRAM
//#define CAMERA_MODEL_XIAO_ESP32S3 // Has PSRAM
// ** Espressif Internal Boards **
//#define CAMERA_MODEL_ESP32_CAM_BOARD
//#define CAMERA_MODEL_ESP32S2_CAM_BOARD
//#define CAMERA_MODEL_ESP32S3_CAM_LCD
//#define CAMERA_MODEL_DFRobot_FireBeetle2_ESP32S3 // Has PSRAM
//#define CAMERA_MODEL_DFRobot_Romeo_ESP32S3 // Has PSRAM
#include "camera_pins.h"// ===========================
// Enter your WiFi credentials
// ===========================
const char* ssid = "德威智泊--车间";
const char* password = "12345678";// 设置接入点的静态IP地址
IPAddress local_IP(192, 168, 4, 1);
IPAddress gateway(192, 168, 4, 1);
IPAddress subnet(255, 255, 255, 0);const char* ssid_ap = "esp32_cam";
const char* password_ap = "12345678";void startCameraServer();
void setupLedFlash(int pin);void setup() {Serial.begin(115200);Serial.setDebugOutput(true);Serial.println();camera_config_t config;config.ledc_channel = LEDC_CHANNEL_0;config.ledc_timer = LEDC_TIMER_0;config.pin_d0 = Y2_GPIO_NUM;config.pin_d1 = Y3_GPIO_NUM;config.pin_d2 = Y4_GPIO_NUM;config.pin_d3 = Y5_GPIO_NUM;config.pin_d4 = Y6_GPIO_NUM;config.pin_d5 = Y7_GPIO_NUM;config.pin_d6 = Y8_GPIO_NUM;config.pin_d7 = Y9_GPIO_NUM;config.pin_xclk = XCLK_GPIO_NUM;config.pin_pclk = PCLK_GPIO_NUM;config.pin_vsync = VSYNC_GPIO_NUM;config.pin_href = HREF_GPIO_NUM;config.pin_sccb_sda = SIOD_GPIO_NUM;config.pin_sccb_scl = SIOC_GPIO_NUM;config.pin_pwdn = PWDN_GPIO_NUM;config.pin_reset = RESET_GPIO_NUM;config.xclk_freq_hz = 20000000;config.frame_size = FRAMESIZE_UXGA;config.pixel_format = PIXFORMAT_JPEG; // for streaming//config.pixel_format = PIXFORMAT_RGB565; // for face detection/recognitionconfig.grab_mode = CAMERA_GRAB_WHEN_EMPTY;config.fb_location = CAMERA_FB_IN_PSRAM;config.jpeg_quality = 12;config.fb_count = 1;// if PSRAM IC present, init with UXGA resolution and higher JPEG quality//                      for larger pre-allocated frame buffer.if(config.pixel_format == PIXFORMAT_JPEG){if(psramFound()){config.jpeg_quality = 10;config.fb_count = 2;config.grab_mode = CAMERA_GRAB_LATEST;} else {// Limit the frame size when PSRAM is not availableconfig.frame_size = FRAMESIZE_SVGA;config.fb_location = CAMERA_FB_IN_DRAM;}} else {// Best option for face detection/recognitionconfig.frame_size = FRAMESIZE_240X240;
#if CONFIG_IDF_TARGET_ESP32S3config.fb_count = 2;
#endif}#if defined(CAMERA_MODEL_ESP_EYE)pinMode(13, INPUT_PULLUP);pinMode(14, INPUT_PULLUP);
#endif// camera initesp_err_t err = esp_camera_init(&config);if (err != ESP_OK) {Serial.printf("Camera init failed with error 0x%x", err);return;}sensor_t * s = esp_camera_sensor_get();// initial sensors are flipped vertically and colors are a bit saturatedif (s->id.PID == OV2640_PID) {s->set_vflip(s, 1); // flip it backs->set_brightness(s, 1); // up the brightness just a bits->set_saturation(s, -2); // lower the saturation}// drop down frame size for higher initial frame rateif(config.pixel_format == PIXFORMAT_JPEG){s->set_framesize(s, FRAMESIZE_QVGA);}#if defined(CAMERA_MODEL_M5STACK_WIDE) || defined(CAMERA_MODEL_M5STACK_ESP32CAM)s->set_vflip(s, 1);s->set_hmirror(s, 1);
#endif#if defined(CAMERA_MODEL_ESP32S3_EYE)s->set_vflip(s, 1);
#endif// Setup LED FLash if LED pin is defined in camera_pins.h
#if defined(LED_GPIO_NUM)setupLedFlash(LED_GPIO_NUM);
#endif// WiFi.begin(ssid, password);// WiFi.setSleep(false);// while (WiFi.status() != WL_CONNECTED) {//   delay(500);//   Serial.print(".");// }// Serial.println("");// Serial.println("WiFi connected");// startCameraServer();// Serial.print("Camera Ready! Use 'http://");// Serial.print(WiFi.localIP());// Serial.println("' to connect");// 配置接入点（AP）模式WiFi.softAPConfig(local_IP, gateway, subnet);bool result = WiFi.softAP(ssid_ap,password);Serial.print("Camera Ready! Use 'http://");Serial.print(WiFi.softAPIP());Serial.println("' to connect");}void loop() {// Do nothing. Everything is done in another task by the web serverdelay(10000);
}

重启链接wifi:
